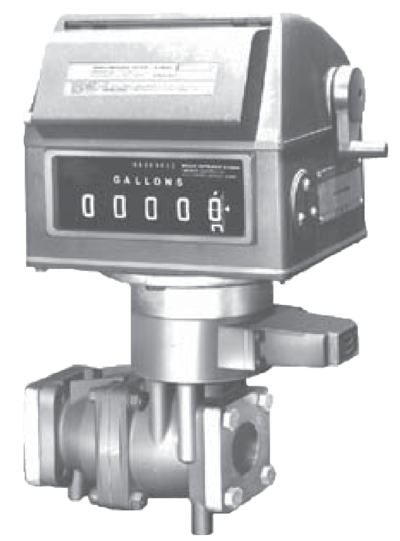

B037 Mechanical Birotor

Brand: Brodie International
Request Information
The BiRotor Meter is a positive displacement meter utilized in the most demanding applications requiring accuracy, long life and ruggedness.

The Mechanical BiRotor Meter utilizes the exclusive BiRotor principle.

There are no sliding, oscillating, or reciprocating
Features
  • Extremely long service life
  • Economical low maintenance
  • Two simple rotors with no metal-to-metal contact are the only moving parts in the measuring chamber
  • No oscillating, reciprocating or sliding parts or cranks to wear or disturb the balanced rotary
  • Conforms with International standards of flowmeter accuracy
The BiRotor Meter is a positive displacement meter utilized in the most demanding applications requiring accuracy, long life and ruggedness.

The Mechanical BiRotor Meter utilizes the exclusive BiRotor principle.

There are no sliding, oscillating, or reciprocating
Features
  • Extremely long service life
  • Economical low maintenance
  • Two simple rotors with no metal-to-metal contact are the only moving parts in the measuring chamber
  • No oscillating, reciprocating or sliding parts or cranks to wear or disturb the balanced rotary
  • Conforms with International standards of flowmeter accuracy
Close

Specifications

Brand

Enclosure, Body Material

  • Body: Aluminum
  • Housing: Ductile Iron

NPT Connection

  • 1-1/2” NPT

Pressure Range

  • bar: 0 to 24.13
  • kPa: 0 to 2,413
  • psi: 0 to 350

Housing

  • Ductile Iron (Model B037)

Body and End Plates

  • Aluminum

Rotors

  • Aluminum with E.T.D. 150 Shaft

Timing Gears

  • Stainless Steel

Drive Gears

  • Celcon Acetal Copolymer Resin and Stainless Steel

Bushings

  • Carbon Filled Tefl on - B037

Ball Bearings

  • Stainless Steel - B037
