Description

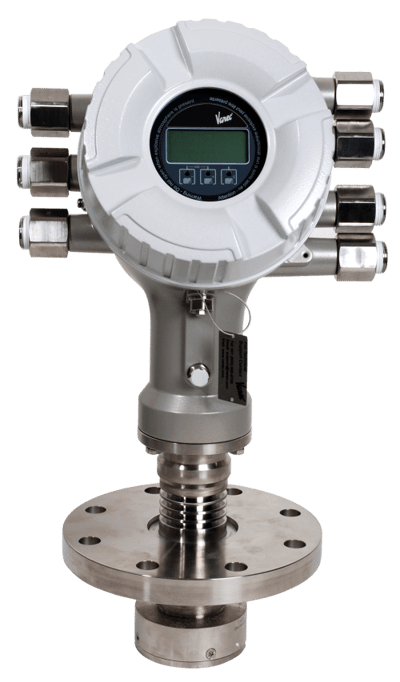

The NMR84 Radar Tank Gauge (RTG), with an accuracy rate of ±0.5 mm and ideally suited for stilling well applications in custody transfers, is used for high accuracy, continuous, non-contact level measurement in bulk liquid storage tanks.
Specifications
Specifications
Brand
Weight
- Housing with electronics: approx. 12 kg (26 lb)
- Sensor and Process Connection: 8.5 to 43 kg (19 to 95 lb), dependent on the device version
Enclosure
- Housing: Aluminum
- Antenna and Process Connection:
- 316L: Flange, Housing Adapter, Sensor Adapter, Antenna Retaining Ring, Antenna Extension
- PTFE: Planar Antenna
- FKM/HNBR/FFKM: Sealing Ring
- Rated IP66/68, NEMA Type 4X/6P enclosure
Flange Type
- NPS ASME B16.5, 150 lb, 4″ to 10″
- NPS ASME B16.5, 300 lb, 4″ to 8″
- DN 100/DN 150, PN 10/16 B1 and PN 25/40 B1
- DN 200/DN 250, PN 16 B1
- DN 200 PN 25 B1
- UNI flange DN 150/6″/150, max. PN 1/ Class 14.5/1K, suitable for DN 150 PN 10/16, NPS 6″ Class 150, 10K 150
- UNI flange DN 200/8″/200, max. PN 1/ Class 14.5/1K, suitable for DN 200 PN 10/16, NPS 8″ Class 150, 10K 200
- UNI flange DN 250/10″/250, max. PN 1/ Class 14.5/1K, suitable for DN 250 PN 10/16, NPS 10″ Class 150, 10K 250
- UNI flange DN 300/12″/300, max. PN 1/ Class 14.5/1K, suitable for DN 300 PN 10/16, NPS 12″ Class 150, 10K 300
Ambient Temperature
- Device: -40° to +60° C (-40° to +140° F)
- Display Module: -20° to +70° C (-4° to +158° F)
Primary Output
- Modbus RS-485
- V1
- 4-20 mA HART Ex d/XP, RTD input
- 4-20 mA HART Ex i/IS, RTD input
Range
- Calibration Range: 30 m (98 ft)
- Maximum Range: Depending upon configuration choices
- 0.8 to 20 m (2.6 to 66 ft)
- 0.8 to 30 m (2.6 to 98 ft)
- 0.8 to 40 m (2.6 to 131 ft)
Approvals
- FM, IEC Ex and ATEX approvals
