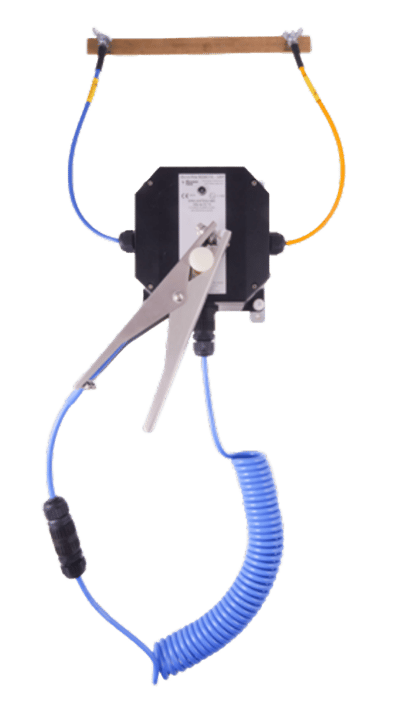

Bond-Rite® REMOTE EP Continuous Ground Loop Monitoring With Visual Indication

Brand: Newson Gale
Request Information

Bond-Rite REMOTE is a static grounding system with visual indication.  This system is the best solution for simple day to day manufacturing processes where there isn’t a need or requirement for interlocking capability.

Operators are unable to confirm a good earth connection before the process begins if using a simple grounding clamp and cable assembly.

Grounding systems with visual indication (high intensity flashing Green LED) are intrinsically safe (Ex ia) and monitor the resistance between the equipment that they are attached to and the true earth ground connection (or they can bond metal plant items together such as drums, IBCs or tank trucks).

This provides the operator and their colleagues with confidence that the process is reliably grounded and continuously monitored to 10 Ohms (or less) before the process starts.

The Bond-Rite REMOTE (EP) system is externally powered for process applications that require grounding for more than 6 hours per day utilizing a Newson Gale 115 / 230 V AC power supply with I.S. output.

Wall mounted versions are available from either GRP or stainless steel to suit the processing environment.

Features
  • Highly visible LED housed in wall mounted enclosure indicates to operators when a resistance threshold of 10 Ohms or less has been achieved
  • Tungsten carbide teeth bite through product deposit build up, rust & drum coatings
  • Stainless steel clamps designed to withstand use in tough chemical processing and industrial environments
  • 10 Ohms loop resistance monitoring based on National and International Standards and Recommended Practices
  • Indicator station mounted stowage pin provides operators with location to return the grounding clamp when the operation is finished

Bond-Rite REMOTE is a static grounding system with visual indication.  This system is the best solution for simple day to day manufacturing processes where there isn’t a need or requirement for interlocking capability.

Operators are unable to confirm a good earth connection before the process begins if using a simple grounding clamp and cable assembly.

Grounding systems with visual indication (high intensity flashing Green LED) are intrinsically safe (Ex ia) and monitor the resistance between the equipment that they are attached to and the true earth ground connection (or they can bond metal plant items together such as drums, IBCs or tank trucks).

This provides the operator and their colleagues with confidence that the process is reliably grounded and continuously monitored to 10 Ohms (or less) before the process starts.

The Bond-Rite REMOTE (EP) system is externally powered for process applications that require grounding for more than 6 hours per day utilizing a Newson Gale 115 / 230 V AC power supply with I.S. output.

Wall mounted versions are available from either GRP or stainless steel to suit the processing environment.

Features
  • Highly visible LED housed in wall mounted enclosure indicates to operators when a resistance threshold of 10 Ohms or less has been achieved
  • Tungsten carbide teeth bite through product deposit build up, rust & drum coatings
  • Stainless steel clamps designed to withstand use in tough chemical processing and industrial environments
  • 10 Ohms loop resistance monitoring based on National and International Standards and Recommended Practices
  • Indicator station mounted stowage pin provides operators with location to return the grounding clamp when the operation is finished
Close

Specifications

Brand

Ingress Protection

  • Type 4X (IP 66)

Ambient Temperature Range

  • Monitor: -40° to +140° F
  • Universal power supply: -13° to +131° F

Monitored Loop Resistance

  • Nominally ≤10 Ω (±10%)

Indicator Lamp LED

  • 1 Green

Battery Supply Option

  • Varta 6122 E-Block (9 V Lithium-Manganese Battery) supplied with unit

Power Supply Option

  • Newson Gale Universal Power Supply

Enclosure Material

  • Monitor: Glass Reinforced Plastic (carbon loaded)
  • Power supply: Glass Reinforced Plastic (carbon loaded)
  • Monitor: 304 stainless steel

Power Supply

  • 115 or 230 Vac, 50-60 Hz

Approvals & Certifications

  • NEC 500 / CEC (Class & Division)
  • NEC 505 & 506 (Class & Zoning)
  • CEC Section 18 (Class & Zoning)
  • UKCA Ex
  • CCC
  • KCs (Gas), KCs (Dust)
  • Europe: IECEx, ATEX
