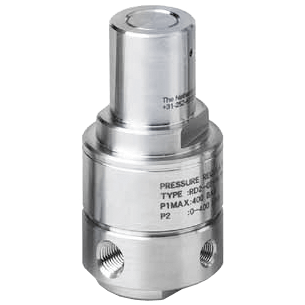

RD2 Series Regulator

Brand: Swagelok Company
These pressure-reducing, dome-loaded and air-loaded regulators are suitable for most gases and liquids, including acids and oils.

These regulators feature various poppet designs, a pressure-sensing diaphragm (piston in RD2 series), and a choice of seat and seal materials to accommodate a variety of pressure, temperature, and flow conditions.
Features
  • Piston sensing
  • Integral 25 μm filter
  • Cartridge poppet assembly for ease of service
  • Bottom mounting
  • Maximum Inlet Pressure: psig: 5,800 (bar: 400, kPa: 39,989)
  • Maximum Outlet Pressure: psig: 5,800 (bar: 400, kPa: 39,989)
  • Sensing Type: Piston
  • Temperature Range: -20 to 80°C (-4 to 176°F)
  • Flow Coefficient: 0.05 Cv
  • Connections:
    • Inlet/Outlet: 1/4" Female NPT
    • Gauge: 1/4" Female NPT
    • Dome: 1/8" Female NPT
  • Construction Material:
    • Piston: 316L Stainless Steel
    • Body Material: 316L Stainless Steel
    • O-Ring: FKM, Nitrile, EPDM, FFKM
    • Dome: 316L Stainless Steel
    • Poppet: 431 Stainless Steel
    • Seat: PEEK, PCFTE
These pressure-reducing, dome-loaded and air-loaded regulators are suitable for most gases and liquids, including acids and oils.

These regulators feature various poppet designs, a pressure-sensing diaphragm (piston in RD2 series), and a choice of seat and seal materials to accommodate a variety of pressure, temperature, and flow conditions.
Features
  • Piston sensing
  • Integral 25 μm filter
  • Cartridge poppet assembly for ease of service
  • Bottom mounting
  • Maximum Inlet Pressure: psig: 5,800 (bar: 400, kPa: 39,989)
  • Maximum Outlet Pressure: psig: 5,800 (bar: 400, kPa: 39,989)
  • Sensing Type: Piston
  • Temperature Range: -20 to 80°C (-4 to 176°F)
  • Flow Coefficient: 0.05 Cv
  • Connections:
    • Inlet/Outlet: 1/4" Female NPT
    • Gauge: 1/4" Female NPT
    • Dome: 1/8" Female NPT
  • Construction Material:
    • Piston: 316L Stainless Steel
    • Body Material: 316L Stainless Steel
    • O-Ring: FKM, Nitrile, EPDM, FFKM
    • Dome: 316L Stainless Steel
    • Poppet: 431 Stainless Steel
    • Seat: PEEK, PCFTE
