Description

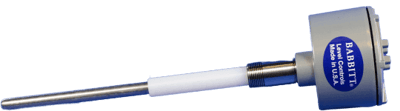

The LS2000 is a simple, low cost point level switch that provides reliable level detection in a wide variety of liquid and dry materials.
Unlike mechanical devices, the LS2000 level switch has no moving parts to wear out, jam or break, significantly reducing the need for regular maintenance and cleaning.
Calibration is a snap, one piece design makes installation quick and easy.
Proprietary radio frequency (RF) technology provides excellent level measurement and stability while having the ability to ignore significant product buildup, thus eliminating the need for recalibration.
Features- 10 amp, SPDT relay output
- Solid state, no moving parts
- Simple installation and calibration
- Explosion proof housing standard
- Probe length easily field modified
- Fail safe electronics
Configure
Specifications
Specifications
Power
- 115 Vac (± 15 %) 60 Hz, 2 Watts or 24 Vdc @ 32 mA Max.
Output
- 10amp resistive at 125 Vac
- 8 amp @ 250 Vac
- 5 amp @ 30 Vdc
- Form C Contact SPDT Relay
Enclosure
- Cast Aluminum, Explosion Proof - Class I, Groups C & D, Class II, Groups E, F & G
Maximum Pressure
- 300 psi @ 75° F
RF Frequency
- 1.3 MHz
Failsafe
- Selectable High or Low level
Temperature Range
- UHMWPE Insulator: -30° F to 180° F
- Teflon insulator: -30° F to 450° F
Applications
Applications
- High or Low Level Alarms
- Sump Control
- Oil/Water Interface Detection
- Dry Pump Protection
Liquid & Dry Materials
- Water/Wastewater
- Acids/Caustics
- Chemicals/Oils
- Slurries
- Flour/Grains
- Powder/Plastics
- Sand/Cement
