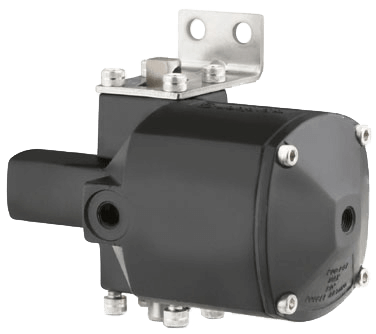

Images are representations only.

MS-1 Model 31

Brand: Swagelok Company
Features
  • Maximum Pressure Rating: 200 psig, 1,370 kPa, 13.7 bar
  • Models: 90°
  • Modes: Spring Return (Single, Dual), Double Acting (Single, Dual)
  • Service: High or Low Temperature, Nonfluorocarbon
  • Options: Mounting Bracket (Sold Separately)
Features
  • Maximum Pressure Rating: 200 psig, 1,370 kPa, 13.7 bar
  • Models: 90°
  • Modes: Spring Return (Single, Dual), Double Acting (Single, Dual)
  • Service: High or Low Temperature, Nonfluorocarbon
  • Options: Mounting Bracket (Sold Separately)
Models matching criteria: 8
  • Valve Series - 41
  • Model - 31-90° Actuation
  • Mode - Spring Return
  • Service - High Temperature
Out of Stock
  • Valve Series - 41G
  • Model - 31-90° Actuation
  • Mode - Double-Acting
  • Service - Non-Fluorocarbon
Out of Stock
  • Valve Series - 41
  • Model - 31-90° Actuation
  • Mode - Spring Return
  • Service - Low Temperature
Out of Stock
  • Valve Series - 41
  • Model - 31-90° Actuation
  • Mode - Double-Acting
  • Service - High Temperature
Out of Stock
  • Valve Series - 41
  • Model - 31-90° Actuation
  • Mode - Spring Return
  • Service - Non-Fluorocarbon
Out of Stock
  • Valve Series - 41
  • Model - 31-90° Actuation
  • Mode - Double-Acting
  • Service - Standard
Out of Stock
  • Valve Series - 41
  • Model - 31-90° Actuation
  • Mode - Spring Return
  • Service - Standard
Out of Stock
  • Valve Series - 41G
  • Model - 31-90° Actuation
  • Mode - Double-Acting
  • Service - Low Temperature
Out of Stock

Specifications

Actuator Type

  • Double-Acting
  • Spring Return

Designed For

  • 31 to 90° Actuation

Enclosure, Body Material

  • Alloy 400 or Monel
  • Brass
  • Stainless Steel

Flow Rate

  • 0.05 to 2.4 Cv

Packing Material

  • PFA
  • PTFE
  • UHWMPE

Process Temperature

  • -40° to 204° C (-40° to 400° F)

Service

  • High Temperature
  • Low Temperature
  • Non-Fluorocarbon
  • Standard

System Pressure

  • bar: 6.8 to 13.7
  • kPa: 680 to 1,337
  • psig: 100 to 200
