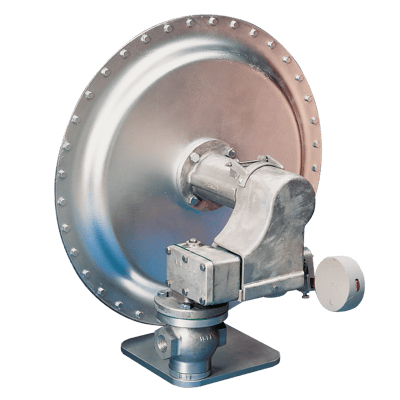

Varec Series 180 Double Port Pressure Regulators

Brand: Varec
Request Information
Double port regulators with a variety of model options for upstream and downstream pressure control.
Features
  • Large diaphragm and a unique ‘double port’ design achieve a sensitivity of less than 5%.
  • Set pressure controlled by a weighted lever for settings below 1" (25 mm) WC; combination weighted lever and spring for settings up to 20" (500 mm) WC.
  • Double port design adds a dampening effect, allowing the valve smoothly to seek set pressure.
  • Rotary linkage design eliminates friction and drag.
  • Diaphragm chamber and valve body completely isolated to eliminate leakage.
  • Wide range of materials for service in most applications.
  • Easily adjustable setting for fine tuning in the field.
  • Can be set as close as 0.4" WC apart (blanket and recovery).
Double port regulators with a variety of model options for upstream and downstream pressure control.
Features
  • Large diaphragm and a unique ‘double port’ design achieve a sensitivity of less than 5%.
  • Set pressure controlled by a weighted lever for settings below 1" (25 mm) WC; combination weighted lever and spring for settings up to 20" (500 mm) WC.
  • Double port design adds a dampening effect, allowing the valve smoothly to seek set pressure.
  • Rotary linkage design eliminates friction and drag.
  • Diaphragm chamber and valve body completely isolated to eliminate leakage.
  • Wide range of materials for service in most applications.
  • Easily adjustable setting for fine tuning in the field.
  • Can be set as close as 0.4" WC apart (blanket and recovery).
Close
Close

Specifications

Brand

Pressure Class

  • ASME

Materials

  • Aluminum, Carbon Steel

Sizes

  • 1" to 8" (25 to 200 mm)

Connections

  • 1" Size: Threaded
  • 2" to 8" Sizes: Drilled Flange

Pressure Settings

  • -0.4" to 20" WC (-10 to 500 mm WC)
