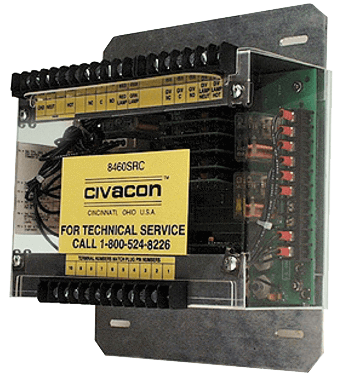

Model 8460 Opti-Therm Rack Monitor

Brand: Civacon Corporate
Request Information
The Model 8460 has been engineered to automatically recognize the type of overfill system - either optic or thermistor-signal - that is being used on a transport.

When connected to the transport, the status of sensors within the tanks or compartments is monitored with automatic warning of product-overfill detection occurring at predetermined levels.
Features
  • Automatic Switching Operation Eliminates Need For Manual Setting
  • Combined Optic and Thermistor Technology Removes Uncertainty Regarding which is Being
  • Used on the Transport
  • Compatible with all 5-wire Optic, Thermistor and Thermo-Optic Sensors
  • 0.5-second Maximum Response Time
  • Will Load All Trailers with Any Brand/Style of Overfill-detection System
  • Ground Verification Included via Separate Relay Contact
  • Overfill Detection and Ground Verification Signaled Separately to Terminal Automation System: TAS
  • Maximum Flexibility at the Loading Terminal without Compromising Safety
  • LED Lamps for Long Life and Reliability
The Model 8460 has been engineered to automatically recognize the type of overfill system - either optic or thermistor-signal - that is being used on a transport.

When connected to the transport, the status of sensors within the tanks or compartments is monitored with automatic warning of product-overfill detection occurring at predetermined levels.
Features
  • Automatic Switching Operation Eliminates Need For Manual Setting
  • Combined Optic and Thermistor Technology Removes Uncertainty Regarding which is Being
  • Used on the Transport
  • Compatible with all 5-wire Optic, Thermistor and Thermo-Optic Sensors
  • 0.5-second Maximum Response Time
  • Will Load All Trailers with Any Brand/Style of Overfill-detection System
  • Ground Verification Included via Separate Relay Contact
  • Overfill Detection and Ground Verification Signaled Separately to Terminal Automation System: TAS
  • Maximum Flexibility at the Loading Terminal without Compromising Safety
  • LED Lamps for Long Life and Reliability
Close

Specifications

Brand

Operating Temperature

  • -40° F to 158° F
  • -40° C to 70° C

Input Requirements

  • 120 Vac 60 Hz
  • 15 VA - Standard
  • 120 Vac Available - Please Inquire

Output Relay Contacts

  • 240 Vac
  • 5A DPDT

Response Time

  • 0.5 Seconds Max.
  • Dry to Wet Transition

Electrical Connections

  • Internal Terminal Strips

Enclosures

  • NEMA 4 Explosion-proof

Housing Material

  • Aluminum

Approximate Weight

  • 8400 - 30 lbs
  • 8420 - 31 lbs
  • 8440 - 32 lbs
  • 8460 - 32 lbs

Approvals

  • Factory Mutual
  • CSA

Installation Information

  • Provided with the monitor.
  • Can also be accessed and downloaded via website.
