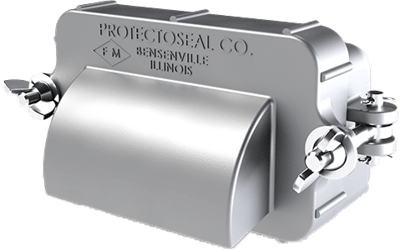

Series 860 End-of-Line Rectangular Plate Flame Arrester

Brand: Protectoseal Company
Request Information
The Protectoseal Series 860 Flame Arresters are installed where it is not necessary to conserve vapor but where low flash point solvents must be protected against fire and explosion from external sources of ignition.

These arresters are designed with housings calculated to provide the maximum air-flow consistent with operating efficiency, fire protection and low-cost maintenance.
Features
  • Sizes 2" (DN 50) through 8" (DN 200)
  • FM Approved in 2" through 6"
  • Listed by Underwriters Laboratories in 2" through 8"
  • Suitable for use with vapors equivalent to NEC 500 Group D, IEC Group IIA
  • Vertically mounted, rectangular plate-type flame arrester(s)
  • Protects against fire
  • Minimizes pressure drop under normal operating conditions
  • Easy inspection and maintenance
  • Factory inspected prior to shipment
  • Available in Aluminum, Ductile Iron and Stainless Steel
The Protectoseal Series 860 Flame Arresters are installed where it is not necessary to conserve vapor but where low flash point solvents must be protected against fire and explosion from external sources of ignition.

These arresters are designed with housings calculated to provide the maximum air-flow consistent with operating efficiency, fire protection and low-cost maintenance.
Features
  • Sizes 2" (DN 50) through 8" (DN 200)
  • FM Approved in 2" through 6"
  • Listed by Underwriters Laboratories in 2" through 8"
  • Suitable for use with vapors equivalent to NEC 500 Group D, IEC Group IIA
  • Vertically mounted, rectangular plate-type flame arrester(s)
  • Protects against fire
  • Minimizes pressure drop under normal operating conditions
  • Easy inspection and maintenance
  • Factory inspected prior to shipment
  • Available in Aluminum, Ductile Iron and Stainless Steel
Close

Specifications

Brand

Approvals & Certifications

  • FM
  • UL

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum
  • Ductile Iron

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 125# (Flat Face)
  • 10” (DN 250) - 150# (Raised Face)
  • 10” (DN 250) - PN 16

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 125# (Flat Face)
  • 6” (DN 150) - 150# (Raised Face)
  • 6” (DN 150) - PN 16

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 125# (Flat Face)
  • 8” (DN 200) - 150# (Raised Face)
  • 8” (DN 200) - PN 16

NPT Connection

  • 2” NPT Female
  • 3” NPT Female
  • 4” NPT Female
