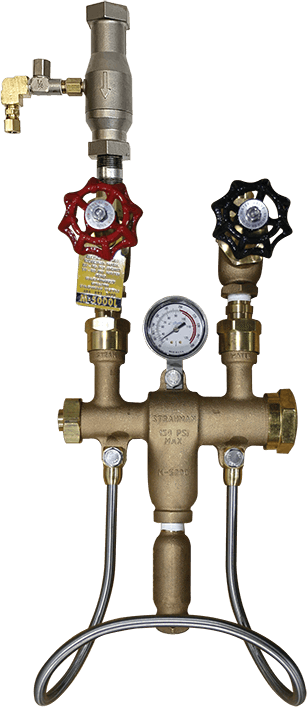

M-5000TG Bronze Mixing Unit Hose Station

Brand: Strahman Valves, Inc
Request Information
The Strahman M-5000TG Bronze Mixing Unit Hose Station produces instant hot water from a steady supply steam and cold water. Users can easily regulate the temperature by turning the unit’s steam and cold water valves. The washdown station also features a specially designed blending chamber to thoroughly and evenly blend the steam and cold water.

The M-5000TG Series is equipped with a dial-type gauge that accurately indicates the wash water’s exact temperature.

As an added safety measure, these units shut off their steam source automatically if the cold water supply falls below 50 PSI for any reason. This prevents hazardous steam from exiting the unit and causing the user steam burns.
Features
  • Bronze
  • Temperature Gauge (TG)
  • Available in Globe Valve top entry (shown) or Angle Valve back entry
  • Direct Diffuse® Steam Trap
  • Blending chamber
  • Auto-shut-off
  • Stainless Steel Hose Rack
  • Max. Water Temp. 200º F (93º C)
  • Required Steam Pressure:  80 psi up to 150 psi (depending on model)
  • Required Cold Water Pressure: 50-80 psi (Maximum of 150 psi)
The Strahman M-5000TG Bronze Mixing Unit Hose Station produces instant hot water from a steady supply steam and cold water. Users can easily regulate the temperature by turning the unit’s steam and cold water valves. The washdown station also features a specially designed blending chamber to thoroughly and evenly blend the steam and cold water.

The M-5000TG Series is equipped with a dial-type gauge that accurately indicates the wash water’s exact temperature.

As an added safety measure, these units shut off their steam source automatically if the cold water supply falls below 50 PSI for any reason. This prevents hazardous steam from exiting the unit and causing the user steam burns.
Features
  • Bronze
  • Temperature Gauge (TG)
  • Available in Globe Valve top entry (shown) or Angle Valve back entry
  • Direct Diffuse® Steam Trap
  • Blending chamber
  • Auto-shut-off
  • Stainless Steel Hose Rack
  • Max. Water Temp. 200º F (93º C)
  • Required Steam Pressure:  80 psi up to 150 psi (depending on model)
  • Required Cold Water Pressure: 50-80 psi (Maximum of 150 psi)
Close
Close

Specifications

Brand

Body Material

  • Bronze

Hose Rack Material

  • Stainless Steel

Water Temperature

  • Maximum 200° F (93° C)

Required Steam Pressure

  • 80 to150 psi

Required Cold Water Pressure

  • 50 to 80 psi (Maximum 150 psi)
