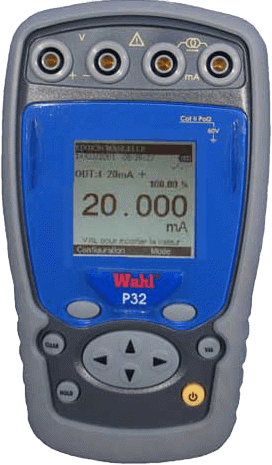

Process Signal Calibrator
Price
Request a Quote
Stock
Out of Stock
Description
Simple and robust, this instrument is designed to simplify maintenance operations and commissioning of sensors and transmitters using process signals such as 4-20 mA or 0-10V. Able to measure and generate currents and voltages.
Features- User Selectable Ranges And Scaling Provide Versatility For All Your Process Measurement Tasks
- High Precision 150 ppm Of Reading
- Low Temperature Coefficients. 15 ppm rdg/°C For Voltage; 20 ppm rdg/°C For Current
- Accuracy is Maintained Even In Difficult Operating Conditions
- Measurement Up To 50V
- Simulation Up To 15V
- Measurement And Emission Up To 25mA
Specifications
Specifications
Dimensions
- (without protection boot) 157 x 85 x 45 mm
Weight
- 10.79 ounces (306 g)
Tightness
- IP 54 according to EN 60529
Reference Conditions
- 23° C ± 5° C, relative humidity: 45 % to 75 %.
Nominal Operating Conditions
- -10° C up to + 50° C, relative humidity: 20 % up to 80 % without condensation.
Maximum Operating Conditions
- - 10° C up to + 55° C, relative humidity: 10 % up to 80 % (70 % at 55° C).
Maximum Storage Temperature
- - 30° C up to + 60° C (without battery).
Certifications
- Electromagnetic compatibility of electrical equipment according to EN 61326
- Electrical Security according to EN 61010
Power Supply
- P32 delivered standard with 4 AA batteries. Optional Rechargeable Battery pack with charger is available.
