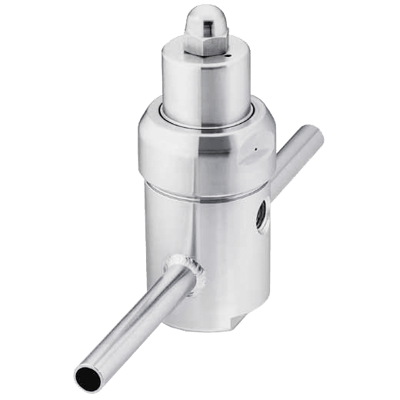

KSV Series Steam-Heated Vaporizing Regulator

Brand: Swagelok Company
The KSV series is a steam-heated vaporizing regulator with a low internal volume.

It can be used to vaporize liquid samples or to preheat gas samples to prevent them from condensing.
Features
  • Convoluted, nonperforated diaphragm
  • Metal-to-metal diaphragm seal
  • Low internal volume
  • Maximum Inlet Pressure
    • psig: 100 to 3,600
    • bar: 6.8 to 248.2
    • kPa: 689 to 24,821
  • Pressure Control Range
    • psig: 0 to 10
    • bar: 0 to 0.68
    • kPa: 0 to 68.9
    • through psig: 0 to 500 (bar: 0 to 34.4, kPa: 0 to 3,447)
  • Maximum Operating Temperature
    • 200° C
    • 392° F
  • Ports
    • 1/8" Female NPT Inlet
    • 1/4" Female NPT Outlet(s)
    • Steam tube 1/2" Outside Diameter, 0.049" wall
  • Actuator: Anti-tamper nut
  • Materials of Construction
    • Enclosure: 316 Stainless Steel
    • Diaphragm: Alloy X-750
    • Poppet: S17400 Stainless Steel
    • Seat: PEEK
The KSV series is a steam-heated vaporizing regulator with a low internal volume.

It can be used to vaporize liquid samples or to preheat gas samples to prevent them from condensing.
Features
  • Convoluted, nonperforated diaphragm
  • Metal-to-metal diaphragm seal
  • Low internal volume
  • Maximum Inlet Pressure
    • psig: 100 to 3,600
    • bar: 6.8 to 248.2
    • kPa: 689 to 24,821
  • Pressure Control Range
    • psig: 0 to 10
    • bar: 0 to 0.68
    • kPa: 0 to 68.9
    • through psig: 0 to 500 (bar: 0 to 34.4, kPa: 0 to 3,447)
  • Maximum Operating Temperature
    • 200° C
    • 392° F
  • Ports
    • 1/8" Female NPT Inlet
    • 1/4" Female NPT Outlet(s)
    • Steam tube 1/2" Outside Diameter, 0.049" wall
  • Actuator: Anti-tamper nut
  • Materials of Construction
    • Enclosure: 316 Stainless Steel
    • Diaphragm: Alloy X-750
    • Poppet: S17400 Stainless Steel
    • Seat: PEEK
