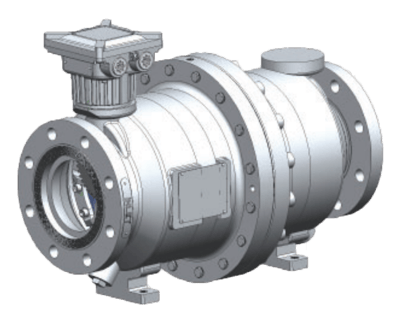

Model B27X-B32X BiRotor Plus Positive Displacement Meter

Brand: Brodie International
The BiRotor Plus is an extremely accurate dual cased flow measuring device.

It produces via the use of non wetted pickoffs a high resolution signal which is directly proportional to the rate of liquid flow through the meter.

These signals are shaped by a simple internal pre-amplifier for transmission to ancillary equipment.

The BiRotor Plus Meter utilizes the exclusive BiRotor principle.

There are no sliding, oscillating, or reciprocating parts.
Features
  • Accuracy: The BiRotor Plus meter is the most accurate PD meter in the market. Outperforming any other meter in the industry, this meter is capable of a linearity of +/- 0.075% with a repeatability of 0.02%.
  • Dependability: There is no metal to metal contact between the rotors and the measurement chamber. The meter is therefore extremely durable. The rotors, bearings and timing gears are the only moving parts. Maintenance requirements are the lowest in the industry.
  • Affordability: No premium for superior performance. Brodie offers the BiRotor Plus at a very competitive price.
  • Flexibility: The BiRotor plus meter can be installed either vertically or horizontally. It offers direct pulse output. And it is field proven in thousands of installations.
The BiRotor Plus is an extremely accurate dual cased flow measuring device.

It produces via the use of non wetted pickoffs a high resolution signal which is directly proportional to the rate of liquid flow through the meter.

These signals are shaped by a simple internal pre-amplifier for transmission to ancillary equipment.

The BiRotor Plus Meter utilizes the exclusive BiRotor principle.

There are no sliding, oscillating, or reciprocating parts.
Features
  • Accuracy: The BiRotor Plus meter is the most accurate PD meter in the market. Outperforming any other meter in the industry, this meter is capable of a linearity of +/- 0.075% with a repeatability of 0.02%.
  • Dependability: There is no metal to metal contact between the rotors and the measurement chamber. The meter is therefore extremely durable. The rotors, bearings and timing gears are the only moving parts. Maintenance requirements are the lowest in the industry.
  • Affordability: No premium for superior performance. Brodie offers the BiRotor Plus at a very competitive price.
  • Flexibility: The BiRotor plus meter can be installed either vertically or horizontally. It offers direct pulse output. And it is field proven in thousands of installations.
Models matching criteria: 6
Brodie Positive Displacement Meter, B2xx & B3xx Plus view more
  • Connections: 10” ANSI (DN250)
In Stock
Brodie Positive Displacement Meter, B2xx & B3xx Plus view more
  • Connections: 8” ANSI (DN200)
In Stock
Brodie Positive Displacement Meter, B2xx & B3xx Plus view more
  • Connections: 6” ANSI (DN150)
In Stock
Brodie Positive Displacement Meter, B2xx & B3xx Plus view more
  • Connections: 6” ANSI (DN150)
In Stock
Brodie Positive Displacement Meter, B2xx & B3xx Plus view more
  • Connections: 4” ANSI (DN100)
In Stock
Brodie Positive Displacement Meter, B2xx & B3xx Plus view more
  • Connections: 3” ANSI (DN80)
In Stock

Specifications

Approvals & Certifications

  • ATEX CE 0359 II 2 G Ex d IIB T6-T4
  • CE European Union (EN 61326)
  • CSA (United States & Canada) Class I, Div. 1, Groups C, D
  • EU Pressure Equipment Directive 97/23/EC
  • FCC 47 CFR Part 15
  • GOST
  • IEC Ex - Ex d IIB T6 - T4 Gb
  • MID Class E2
  • NTEP

Enclosure, Body Material

  • Meter: Alloy (ASTM A352 LCB)
  • Meter: Carbon Steel (ASTM A 216 WCB)
  • Sensor: 304 Stainless Steel
  • UMB: Cast Aluminum (A356 T6)

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X
  • Typical 4X

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150# ANSI
  • 10” (DN 250) - 300# ANSI

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ANSI
  • 3” (DN 80) - 300# ANSI
  • 3” (DN 80) - PN 16
  • 3” (DN 80) - PN 40

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ANSI
  • 4” (DN 100) - 300# ANSI
  • 4” (DN 100) - PN 16
  • 4” (DN 100) - PN 40

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ANSI
  • 6” (DN 150) - 300# ANSI
  • 6” (DN 150) - PN 16

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# ANSI
  • 8” (DN 200) - 300# ANSI
