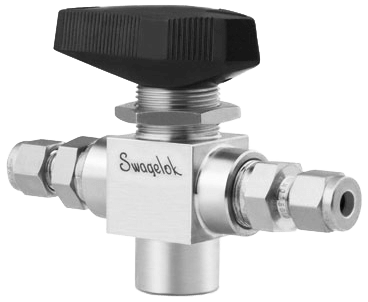

Images are representations only.

3-Way Trunnion 83 Series

Brand: Swagelok Company
Request Information
Features
  • Body Material: Alloy 400, 316 Stainless Steel
  • Temperature Range: -17° to 232°C (0° to 450°F)
  • Pressure Range: 750 to 6,000 psig, 5,171 to 41,369 kPa, 51.71 to 413.7 bar
  • End connection: 1/8" to 1/2" (6 - 12 mm) NPT, Fractional Tube Fitting or Metric
  • Flow Coefficient: 0.75 Cv
Features
  • Body Material: Alloy 400, 316 Stainless Steel
  • Temperature Range: -17° to 232°C (0° to 450°F)
  • Pressure Range: 750 to 6,000 psig, 5,171 to 41,369 kPa, 51.71 to 413.7 bar
  • End connection: 1/8" to 1/2" (6 - 12 mm) NPT, Fractional Tube Fitting or Metric
  • Flow Coefficient: 0.75 Cv
Close
Close

Specifications

Brand

Direct Mount

  • No

Enclosure, Body Material

  • 316 Stainless Steel
  • Alloy 400 or Monel

NPT Connection

  • 1/4” NPT Female
  • 1/8” NPT Female

Options

  • ECE R110
  • Locking Handle
  • Low Temperature
  • Panel Mount

Pressure Rating

  • bar: 51.71 to 413.7
  • kPa: 5,171 to 41,369
  • psig: 750 to 6,000

Process Temperature

  • -17° to 232° C (0° to 450° F)

Seat / Seal Material

  • PCTFE
  • PEEK
  • PTFE
  • Reinforced Nylon

Tube Connection

  • 1/2” Tube
  • 1/4” Tube
  • 10 mm Tube
  • 12 mm Tube
  • 3/8” Tube
  • 6 mm Tube
  • 8 mm Tube

Valve Type

  • Manual
