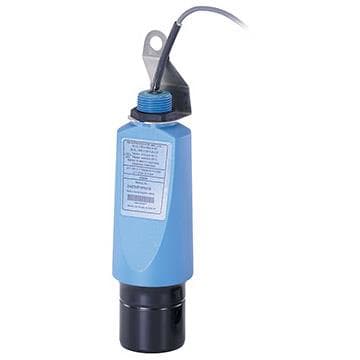

3107/3108 Ultrasonic Level & Flow Transmitter

Brand: Rosemount
Request Information
The Rosemount 3107/3108 Level and Flow Transmitter is a reliable and cost-effective non-contacting solution. It is optimized for level and volume measurements in wet-wells, sumps, tanks, and open channel flow measurement.

Using ultrasonic technology, state of the art electronics, and easy to use software, the Rosemount 3100 gives you high reliability in a wide variety of applications. A rugged all UPVC construction is ideal for exposed site applications and gives you the durable device you want.
Features
  • Continuous non-contacting measurement with no moving parts
  • Volume and open channel flow calculations with pre-programmed library
  • Measures liquid height, distance to liquid, volume, or flow in open channels
  • Automatic temperature compensation
The Rosemount 3107/3108 Level and Flow Transmitter is a reliable and cost-effective non-contacting solution. It is optimized for level and volume measurements in wet-wells, sumps, tanks, and open channel flow measurement.

Using ultrasonic technology, state of the art electronics, and easy to use software, the Rosemount 3100 gives you high reliability in a wide variety of applications. A rugged all UPVC construction is ideal for exposed site applications and gives you the durable device you want.
Features
  • Continuous non-contacting measurement with no moving parts
  • Volume and open channel flow calculations with pre-programmed library
  • Measures liquid height, distance to liquid, volume, or flow in open channels
  • Automatic temperature compensation
Close

Specifications

Brand

Ambient Temperature Range

  • -40° to 60° C (-40° to 140° F)

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • EAC
  • FM
  • IECEx
  • INMETRO
  • NEPSI

BSP Connection

  • 1” BSPP

Communication

  • 4-20 mA / HART

Enclosure, Body Material

  • UVPC

Environmental Protection

  • IP68

NPT Connection

  • 1” NPT

Operating Temperature

  • -40° to 60° C (-40° to 140° F)

Output

  • 4-20 mA

Pressure Range

  • bar: -0.25 to 3
  • kPa: -25 to 300
  • psi: -4 to 44

Wetted Materials

  • UVPC
