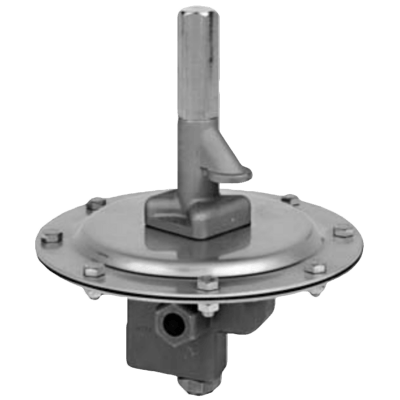

Series 30 Tank Blanketing Valve

Brand: Protectoseal Company
Request Information
Tank Blanketing is an effective means of preventing fires in flammable liquid storage tanks by controlling the formation of explosive vapor / air mixtures.

Blanketing minimizes evaporation of the stored product, thus reducing emission levels.

Protection from external sources of contamination that may adversely affect the tank’s contents is also provided.
Features
  • 1 ⁄2" NPT inlet and outlet standard
  • Direct acting valve mechanism
  • Optional flanged or threaded inlet and outlet connections available
  • Inlet gas pressures from 10 psiG to 200 psiG
  • Set points from -0.1 in.W.C. to 69.2 in.W.C.
  • Optional flow plugs to meet specific flow requirements
  • Fully field serviceable
  • Optional sense line gauges
  • System purge and field test capability available
  • Conforms to the latest ATEX Directive
Tank Blanketing is an effective means of preventing fires in flammable liquid storage tanks by controlling the formation of explosive vapor / air mixtures.

Blanketing minimizes evaporation of the stored product, thus reducing emission levels.

Protection from external sources of contamination that may adversely affect the tank’s contents is also provided.
Features
  • 1 ⁄2" NPT inlet and outlet standard
  • Direct acting valve mechanism
  • Optional flanged or threaded inlet and outlet connections available
  • Inlet gas pressures from 10 psiG to 200 psiG
  • Set points from -0.1 in.W.C. to 69.2 in.W.C.
  • Optional flow plugs to meet specific flow requirements
  • Fully field serviceable
  • Optional sense line gauges
  • System purge and field test capability available
  • Conforms to the latest ATEX Directive
Close

Specifications

Brand

Approvals & Certifications

  • ATEX

Enclosure, Body Material

  • 316 Stainless Steel

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150#
  • 1/2” (DN 15) - 300#

NPT Connection

  • 1/2” NPT Female
