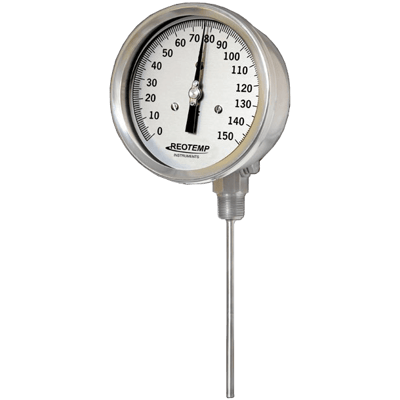

45GR/45LR Direct Drive Gas & Liquid Filled Thermometer

Brand: REOTEMP Instruments Corporation
Request Information
REOTEMP’s Rugged Direct Drive System makes our 45GR and 45LR the right choice for temperature indication in heavy-duty or high vibration applications.

The all-stainless steel case and internals, along with the direct drive system, result in superior instrument life in severe environments.
Features
  • Accuracy ± 1% of Range Span
  • Can handle a wide temperature range up to 1,200° F
  • Heavy-Duty Vibration and Shock Resistant
  • Stainless Steel Sealed Construction
  • Adjustable to any angle.
REOTEMP’s Rugged Direct Drive System makes our 45GR and 45LR the right choice for temperature indication in heavy-duty or high vibration applications.

The all-stainless steel case and internals, along with the direct drive system, result in superior instrument life in severe environments.
Features
  • Accuracy ± 1% of Range Span
  • Can handle a wide temperature range up to 1,200° F
  • Heavy-Duty Vibration and Shock Resistant
  • Stainless Steel Sealed Construction
  • Adjustable to any angle.
Close
Close

Specifications

Brand

Accuracy

  • ± 1 % of Range Span

Actuator Type

  • Stainless Steel Direct Drive Bourdon Coil

Case Material

  • Stainless Steel

Lens

  • Gasket Sealed Glass
  • Polycarbonate Lens

Process Temperature

  • Up to 600° C (Up to 1,200° F)

Stem Length

  • 12” (30.5 cm)
  • 15” (38.1 cm)
  • 18” (45.7 cm)
  • 24” (61 cm)
  • 4” (10.2 cm)
  • 6” (15.2 cm)
  • 9” (22.9 cm)

Bulb Material

  • Stainless Steel
