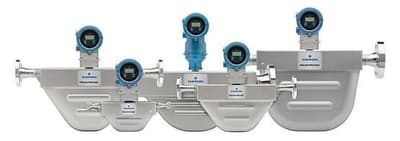

Micro Motion R-Series General-Purpose Coriolis Flow and Density Meters

Brand: Micro Motion - by Emerson
Request Information
Low-footprint, drainable R-Series Coriolis flow meters provide accurate flow and density measurements.

They are ideally suited for general purpose applications that typically require repeatable, reliable, low-maintenance measurements.
Features
  • Achieve high-performance basic liquid mass flow and volume flow measurement in a compact design.
  • Increase flexibility with available 316L stainless steel construction that is compatible with most fluids.
  • Cut costs with an integral transmitter that provides a flow-variable-only architecture.
  • Choose rugged transmitter options including Class I, Division 1 / Zone 1 housing with optional local operator interface.
  • Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D, Class II Div 1 groups E, F and G), ATEX, NEPSI, IECEx, Ingress Protection 66/67, PED, SIL2 and SIL3, and NAMUR.
  • Minimize maintenance and ensure long-term reliability with no moving parts to wear or replace.
  • Install virtually anywhere with compact design.
Low-footprint, drainable R-Series Coriolis flow meters provide accurate flow and density measurements.

They are ideally suited for general purpose applications that typically require repeatable, reliable, low-maintenance measurements.
Features
  • Achieve high-performance basic liquid mass flow and volume flow measurement in a compact design.
  • Increase flexibility with available 316L stainless steel construction that is compatible with most fluids.
  • Cut costs with an integral transmitter that provides a flow-variable-only architecture.
  • Choose rugged transmitter options including Class I, Division 1 / Zone 1 housing with optional local operator interface.
  • Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D, Class II Div 1 groups E, F and G), ATEX, NEPSI, IECEx, Ingress Protection 66/67, PED, SIL2 and SIL3, and NAMUR.
  • Minimize maintenance and ensure long-term reliability with no moving parts to wear or replace.
  • Install virtually anywhere with compact design.
Close

Specifications

Brand

Density Accuracy / Repeatability

  • Up to ± 0.003 g/cm³ (± 0.0015 g/cm³)

Electronics (Soft)

  • Expansive I/O Options Including mA, Frequency, Discrete, HART, Modbus, EtherNet/IP, PROFINET, FOUNDATION Fieldbus

Gas Accuracy / Repeatability

  • Up to ± 0.75 % of Rate (± 0.5 % of Rate)

Line Size

  • 1/4” (DN 6) - 2” (DN 50)

Liquid Accuracy / Repeatability

  • Up to ± 0.4 % of Rate (± 0.2 %, of Rate)

Pressure Range

  • Up to 1450 psig (100 barg)

Temperature Range

  • -148° to 302° F (-100° to 150° C)

Turndown

  • 0.83402777778
