Images are representations only.

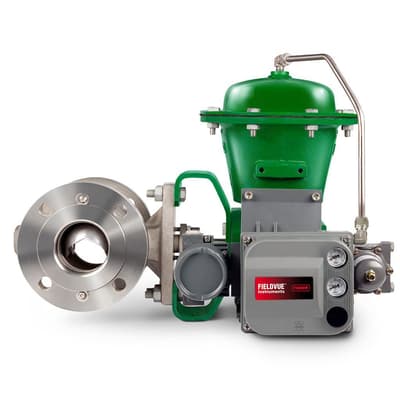

Vee-Ball V150 Flanged Control Valve

Brand: Fisher
The Fisher Vee-Ball V150 control valve is your best choice for performance and cost-effectiveness across a broad range of applications.

The precision-machined parts and pressure-balanced seal designs allow smooth, precise valve operation.
Features
  • Flanged body design eliminates exposed line flange bolting, reduces alignment and installation time, and promotes secure valve installations and piping integrity.
  • The solid HD ball seal construction provides long service life in demanding applications.
  • Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic.
  • Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156.
  • Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve.
  • The one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs.
  • The optional ENVIRO-SEAL™ packing systems are designed with very smooth shaft surfaces and live loading to provide exceptional sealing.
The Fisher Vee-Ball V150 control valve is your best choice for performance and cost-effectiveness across a broad range of applications.

The precision-machined parts and pressure-balanced seal designs allow smooth, precise valve operation.
Features
  • Flanged body design eliminates exposed line flange bolting, reduces alignment and installation time, and promotes secure valve installations and piping integrity.
  • The solid HD ball seal construction provides long service life in demanding applications.
  • Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic.
  • Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156.
  • Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve.
  • The one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs.
  • The optional ENVIRO-SEAL™ packing systems are designed with very smooth shaft surfaces and live loading to provide exceptional sealing.

Specifications

Brand

Approvals & Certifications

  • SIL Capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE

Critical Service

  • Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service

Flow Characteristics

  • Equal Percentage

Material

  • Carbon Steel, Stainless, Duplex, Alloy

Operating Temperature

  • Standard Temperature

Other Configurations

  • Contact Your Local Emerson Business Partner or Sales Office to Learn About Additional Specifications or Options for This Product.

Pressure Class

  • PN, ASME

Process Connection Type

  • Flanged

Shutoff Class

  • Class III (FCI 70-2), Class IV (FCI 70-2), Class VI (FCI 70-2)

Valve Size

  • NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 20, NPS 24

Valve Size Standard

  • NPS, DN
