Description

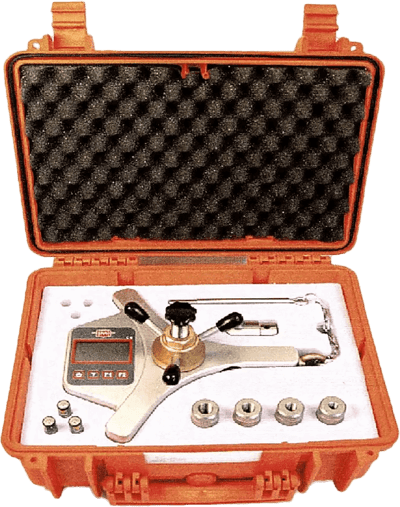

The dynaplug® anchor tester is an electronic load cell designed to measure anchor strength in construction material.
The tool measures traction forces up to 5000 daN.
Its shape as a tripod has been especially designed to minimize its influence on the concrete around the fixing.
The three legs made in stainless steel can be adapted from 70 mm up to 190 mm high.
Features- Accuracy: <1% of Nominal Capacity
- Operating Temperature From -4 to 140F
- Power Supply: Three 1.5 V "AA" Batteries
- Delivered with a Set of Casings Compatible with Most Current Anchors and a Cover Adapted to the Tractel Anchor Points - Other Casings on Request
- Automatic Sequence of 15 Seconds Test to 1,000 lbs
- Automatic Sequence of 3 Minutes Test to 2,000 lbs
- Two Programs Have Been Included Into The Electronic Load Cell:
- Program N°1 Applies A Force Of 500 Dan On The Fixing During 20 Seconds.
- Program N°2 Applies A Force Between Of 1000 Dan On The Fixing During 3 Minutes.
