Description

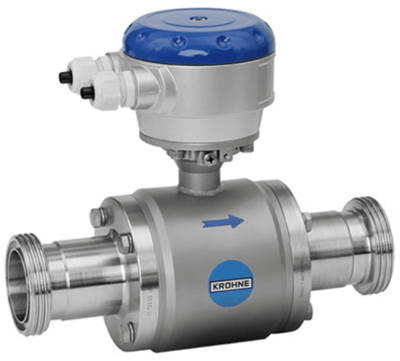

The OPTIFLUX 6000 Electromagnetic Flow Sensor is specifically designed to stay clean and sterile in compliance with the most stringent demands prevailing in the food & beverages and pharmaceutical industries.
There are no crevices, gaps or blind spots and the flow sensor offers full CIP/SIP possibilities.
The flow sensor is conform FDA regulations for all wetted materials and is certified in accordance with EHEDG and 3A.
The OPTIFLUX 6000 provides simple engineering, installation and commissioning.
The flowmeter is available as a separate or compact version. Therefore the flow sensor can be installed in places difficult to access due to for example high temperatures or vibrations.
The converter is also available in a stainless steel housing for applications when for example regular cleaning procedures with aggressive cleaning agents, may attack a standard polyurethane coating.
Features- Robust stainless steel housing for hygienic and aseptic operation
- PFA liner reinforced with embedded stainless steel grid
- Vacuum resistance
- High form stability for good accuracy even with high pressures
- Unique L-shaped gasket prevents expansion of gasket into measurement tube
- Wide choice of electrode materials
- Simple and effective CIP / SIP
- Typical food and beverages and pharmaceutical process connections and insertion lengths
- Large diameter range up to DN150
- All wetted materials FDA conform
- EHEDG and 3A certified
- Conductivity ≥ 1 µS/cm (for demi-water ≥ 20 µS/cm)
- Process temperature up to 140° C (284° F)
Specifications
Specifications
Brand
Ambient Temperature Range
- -40° to 65° C (-40° to 149° F)
Approvals & Certifications
- ATEX II 2 GD or II 2 (1) GD
- CE
- CSA Class I, Div. 2, Groups A, B, C, D, Class II, Div. 2, Groups F, G, Class III, Div. 2, Groups F, G
- EHEDG
- EMC Directive: 2004/108/EC, EN 61326-1: 2006
- FDA
- FM Class I, Div. 2, Groups A, B, C, D, Class II, Div. 2, Groups F, G, Class III, Div. 2, Groups F, G
- LVD 2006/95/EC, EN 61010: 2001
- PED 97/23/EC
Approvals & Certifications
- 3A
Enclosure, Body Material
- Sensor: AISI 304 Stainless Steel, 1.4301 - DN 25 to 150
- Sensor: Duplex Stainless Steel (1.4462) - DN 2.5 to 15
Environmental Protection
- Hazardous Area
- IP66
- IP67
- IP68
- NEMA 4
- NEMA 4X
- NEMA 6
- NEMA 6P
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - PN 40
Flange Size - 1” (DN 25)
- 1” (DN 25) - PN 40
Flange Size - 2-1/2” (DN 65)
- 2-1/2” (DN 65) - PN 25
Flange Size - 2” (DN 50)
- 2” (DN 50) - PN 25
Flange Size - 3” (DN 80)
- 3” (DN 80) - PN 25
Flange Size - 4” (DN 100)
- 4” (DN 100) - PN 25
Flange Size - 5” (DN 125)
- 5” (DN 125) - PN 10
Flange Size - 6” (DN 150)
- 6” (DN 150) - PN 10
Pipe Connection
- DN 10 Pipe Fitting - DIN 11851
- DN 100 Pipe Fitting - DIN 11851 & SMS 1145
- DN 125 Pipe Fitting - DIN 11851
- DN 15 Pipe Fitting - DIN 11851
- DN 150 Pipe Fitting - DIN 11851
- DN 2.5 Pipe Fitting - DIN 11851
- DN 25 Pipe Fitting - DIN 11851 & SMS 1145
- DN 38 Pipe Fitting - SMS 1145
- DN 4 Pipe Fitting - DIN 11851
- DN 40 Pipe Fitting - DIN 11851
- DN 50 Pipe Fitting - DIN 11851
- DN 51 Pipe Fitting - SMS 1145
- DN 6 Pipe Fitting - DIN 11851
- DN 63.5 Pipe Fitting - SMS 1145
- DN 65 Pipe Fitting - DIN 11851
- DN 76 Pipe Fitting - SMS 1145
- DN 80 Pipe Fitting - DIN 11851
Pressure Range
- bar: 0 to 40
- kPa: 0 to 4,000
- psi: 0 to 580
Pressure Type
- Gauge
Storage Temperature
- -50° to 70° C (-58° to 158° F)
Tri-Clamp Connection
- 1” Sanitary Clamp
- 1/2” Sanitary Clamp
- 1-1/2” Sanitary Clamp
- 2” Sanitary Clamp
- 2-1/2” Sanitary Clamp
- 3” Sanitary Clamp
- 3/4” Sanitary Clamp
- 4” Sanitary Clamp
- DN 10 Sanitary Clamp - ISO 2037 & 2852
- DN 100 Sanitary Clamp - DIN 32676
- DN 101.6 Sanitary Clamp - ISO 2037 & 2852
- DN 114.3 Sanitary Clamp - ISO 2037 & 2852
- DN 12 Sanitary Clamp - ISO 2037
- DN 139.7 Sanitary Clamp - ISO 2037 & 2852
- DN 17.2 Sanitary Clamp - ISO 2037 & ISO 2852
- DN 2.5 Sanitary Clamp - ISO 2037 & 2852
- DN 25 Sanitary Clamp - ISO 2037 & 2852, DIN 32676
- DN 38 Sanitary Clamp - ISO 2037 & 2852
- DN 4 Sanitary Clamp - ISO 2037 & 2852
- DN 40 Sanitary Clamp - DIN 32676
- DN 50 Sanitary Clamp - ISO 2852 & DIN 32676
- DN 51 Sanitary Clamp - ISO 2037
- DN 6 Sanitary Clamp - ISO 2037 & 2852
- DN 63.5 Sanitary Clamp - ISO 2037 & 2852
- DN 65 Sanitary Clamp - DIN 32676
- DN 76.1 Sanitary Clamp - ISO 2037 & 2852
- DN 80 Sanitary Clamp - DIN 32676
