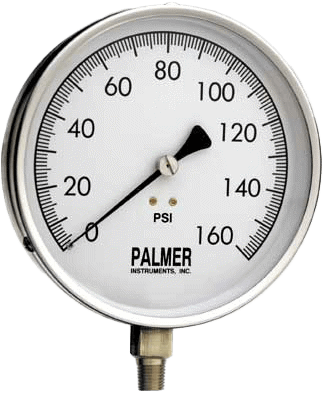

4.5" Stainless Steel Case Contractor Gauges

Brand: Palmer Wahl Instruments, Inc
Request Information
Ideal for use in HVAC applications, Water lines, Air, Gas, Oil, and other applications not corrosive to wetted parts.
Features
  • Durable - Built for the Contractor.
  • Economically Priced For The Job.
  • Can Be Calibrated By Removing Crystal.
Ideal for use in HVAC applications, Water lines, Air, Gas, Oil, and other applications not corrosive to wetted parts.
Features
  • Durable - Built for the Contractor.
  • Economically Priced For The Job.
  • Can Be Calibrated By Removing Crystal.
Close
Close

Specifications

Brand

Case

  • 304 AISI Stainless Steel Case, in 4-1/2” (125 mm) diameter

Fill

  • Dry

Ring

  • 304SS Removable Bezel Ring with 3 screws

Window

  • Acrylic

Socket

  • Brass

Connection

  • 1/4” NPT Standard

Bourdon Tube

  • Phosphor Bronze C-Tube

Movement

  • Brass

Pointer

  • Black painted Aluminum, zero adjustable

Dial

  • White Aluminum with black markings in accordance with ASME B40.1 -2005

Accuracy

  • ± 1 % Full Scale

Range Availability

  • psi, Metric and Dual Scales

Ambient Temperature

  • -4° to 140° F (-20° to 60° C)

Overpressure Limit

  • 120%
Close

Applications

  • HVAC
  • Water
  • Air
  • Gas
  • Oil, And Other Applications Not Corrosive To Wetted Parts
Close

Documentation

Data Sheet
