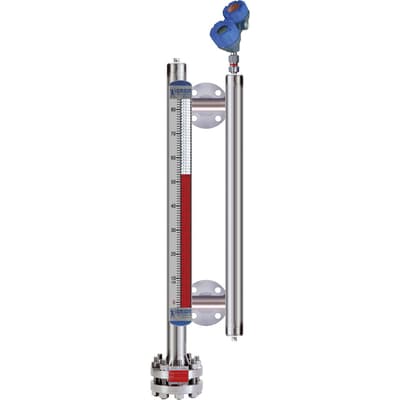

Gemini Magnetic Level Indicator

Brand: Magnetrol
Request Information
The Gemini twin chamber design is unique to the magnetic level gauge industry.

Over 18 configuration styles are available with Gemini, and though not available in plastics, it may be produced in the same metal material selections as AtlasTM.

GEMINI's second chamber facilitates the installation of the Eclipse® Guided Wave Radar transmitter, thus providing a totally redundant measurement system.

With standard magnetic indicators with side clamp-on transmitters, the float represents a single point of indication.

If the float should become damaged due to violent process conditions, the signal from the Analog transmitter is lost.

With GEMINI's dual chamber design, ECLIPSE will continue to measure the liquid level accurately, repeatedly and reliably, as it is not dependent on interaction with the float.

Gemini's magnetic indicator chamber can be equipped with switches, transmitters, blankets or heat tracing, while the secondary chamber houses the electronic measurement instrument.
Features
  • Unique dual chamber design.
  • Broad range of chamber styles.
  • Fabricated non-magnetic chamber.
  • ANSI and DIN flanges.
  • Precision manufactured float.
  • Flag or shuttle type indicator.
The Gemini twin chamber design is unique to the magnetic level gauge industry.

Over 18 configuration styles are available with Gemini, and though not available in plastics, it may be produced in the same metal material selections as AtlasTM.

GEMINI's second chamber facilitates the installation of the Eclipse® Guided Wave Radar transmitter, thus providing a totally redundant measurement system.

With standard magnetic indicators with side clamp-on transmitters, the float represents a single point of indication.

If the float should become damaged due to violent process conditions, the signal from the Analog transmitter is lost.

With GEMINI's dual chamber design, ECLIPSE will continue to measure the liquid level accurately, repeatedly and reliably, as it is not dependent on interaction with the float.

Gemini's magnetic indicator chamber can be equipped with switches, transmitters, blankets or heat tracing, while the secondary chamber houses the electronic measurement instrument.
Features
  • Unique dual chamber design.
  • Broad range of chamber styles.
  • Fabricated non-magnetic chamber.
  • ANSI and DIN flanges.
  • Precision manufactured float.
  • Flag or shuttle type indicator.
