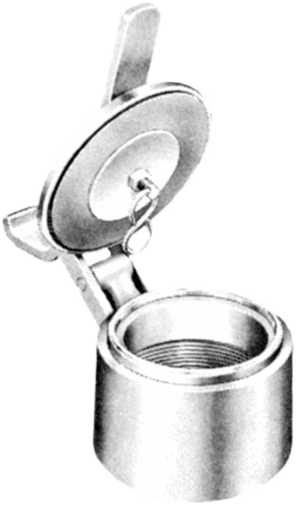

95014 Gauge Hatch

Brand: Shand & Jurs
Request Information
The Shand & Jurs 95014 Gauge Hatch is designed for easy access to storage tanks for gauging product level or temperatures and product sampling.

Available in 4”, 6” and 8” sizes, it is spark-resistant, self-closing and designed for screw mounting to a threaded tank nozzle.

This gauge provides for emergency venting up to 3-1/2 oz./in.2 of pressure. Design features include a flexible seal, stainless steel facing on seat, tape gauge marker and a S-hook for suspending a thermometer or a sampler.
Features
  • Spark-proof, self-closing and designed for screw mounting to a threaded tank nozzle.
  • This gauge provides for emergency venting up to 3-½ oz./sq. in. of pressure.
  • Flexible seal
  • Stainless steel facing on seat Tape gauge marker
  • S-hook for suspending a thermometer or a sample
The Shand & Jurs 95014 Gauge Hatch is designed for easy access to storage tanks for gauging product level or temperatures and product sampling.

Available in 4”, 6” and 8” sizes, it is spark-resistant, self-closing and designed for screw mounting to a threaded tank nozzle.

This gauge provides for emergency venting up to 3-1/2 oz./in.2 of pressure. Design features include a flexible seal, stainless steel facing on seat, tape gauge marker and a S-hook for suspending a thermometer or a sampler.
Features
  • Spark-proof, self-closing and designed for screw mounting to a threaded tank nozzle.
  • This gauge provides for emergency venting up to 3-½ oz./sq. in. of pressure.
  • Flexible seal
  • Stainless steel facing on seat Tape gauge marker
  • S-hook for suspending a thermometer or a sample
Close
Close

Specifications

Brand

Base, Lever and Pallet

  • Hot Rolled Steel

Seal Ring

  • Neoprene

Hinge Pin

  • Stainless Steel

Hardware

  • Brass and Steel

Pressure Setting

  • 3.5 oz./in.2
