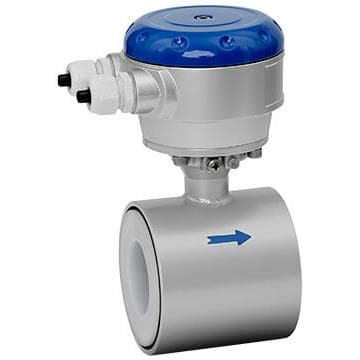

OPTIFLUX 1000 Electromagnetic Flow Sensor

Brand: Krohne
Request Information
Electromagnetic flow sensor in sandwich design.
  • Lightweight and compact
  • Excellent price performance ratio
  • Quick and easy to install
Electromagnetic flow sensor in sandwich design.
  • Lightweight and compact
  • Excellent price performance ratio
  • Quick and easy to install
Close

Specifications

Brand

Ambient Temperature Range

  • -25° to 65° C (-13° to 149° F)

Approvals & Certifications

  • MID Annex MI-001 for Cold Water, MID Annex MI-005 for Liquids

Approvals & Certifications

  • CE
  • CSA (C,US) - Class I, Div. 2, Groups A, B, C, D, Class II, Div. 2, Groups F, G
  • EMC - Directive: 2004/108/EC, Harmonized Standard: EN 61326-1: 2006
  • FM - Class I, Div. 2, Groups A, B, C, D, Class II, Div. 2, Groups F, G, Class III, Div. 2,
  • LVD - Directive: 2006/95/EC, Harmonized Standard: EN 61010: 2010
  • PED - Directive: 97/23/EC, Category I, II, III or Sep

Enclosure, Body Material

  • DN 10 to 40: Malleable Iron (GTW-S-38-12)
  • DN 50 to 150: Sheet Steel

Environmental Protection

  • Hazardous Area
  • IP66
  • IP67
  • NEMA 4
  • NEMA 4X
  • NEMA 6

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# ASME B16.5
  • 1-1/2” (DN 40) - 300# ASME B16.5
  • 1-1/2” (DN 40) - JIS 20K
  • 1-1/2” (DN 40) - PN 16
  • 1-1/2” (DN 40) - PN 40

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150# ASME B16.5
  • 1” (DN 25) - 300# ASME B16.5
  • 1” (DN 25) - JIS 20K
  • 1” (DN 25) - PN 16
  • 1” (DN 25) - PN 40

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150# ASME B16.5
  • 1/2” (DN 15) - 300# ASME B16.5
  • 1/2” (DN 15) - JIS 20K
  • 1/2” (DN 15) - PN 16
  • 1/2” (DN 15) - PN 40

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ASME B16.5
  • 2” (DN 50) - 300# ASME B16.5
  • 2” (DN 50) - JIS 20K
  • 2” (DN 50) - PN 16
  • 2” (DN 50) - PN 40

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ASME B16.5
  • 3” (DN 80) - 300# ASME B16.5
  • 3” (DN 80) - JIS 20K
  • 3” (DN 80) - PN 16
  • 3” (DN 80) - PN 40

Flange Size - 3/8” (DN 10)

  • 3/8” (DN 10) - 150# ASME B16.5
  • 3/8” (DN 10) - 300# ASME B16.5
  • 3/8” (DN 10) - JIS 20K
  • 3/8” (DN 10) - PN 16
  • 3/8” (DN 10) - PN 40

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ASME B16.5
  • 4” (DN 100) - 300# ASME B16.5
  • 4” (DN 100) - JIS 20K
  • 4” (DN 100) - PN 16
  • 4” (DN 100) - PN 40

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ASME B16.5
  • 6” (DN 150) - JIS 10K
  • 6” (DN 150) - PN 16
  • 6” (DN 150) - PN 40

Operating Pressure

  • psi: 0 to 232 (kPa: 0 to 1,600, bar: 0 to 16)

Pressure Range

  • bar: 0 to 40
  • kPa: 0 to 4,000
  • psi: 0 to 580

Pressure Type

  • Absolute

Process Temperature

  • -25° to 120° C (-13° to 248° F)

Repeatability

  • ± 0.1 % of Measured Value, Min. 1 mm/sec

Storage Temperature

  • -50° to 70° C (-58° to 158° F)

Temperature Range

  • 10° to 30° C (50° to 86° F)

Vibration

  • Vibration Test: 4.5 G RMS at 20 to 2,000 Hz, IEC 60068-2-24
