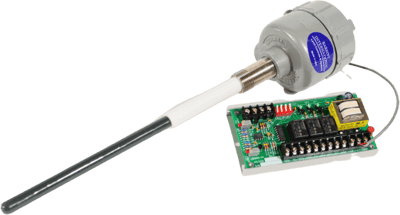

LS8000 Full-Featured Sensor With Remote Electronics

Brand: Babbitt International Inc
The LS8000 remote-mounted level switch is the perfect choice when it is unsafe or inconvenient to mount the electronics directly to the probe.

All calibration, time delay and fail safe adjustments are located on the remote electronics card, which can be mounted up to a mile away.  The ultra-sensitivity adjustment on the LS8000 level switch allows sensing of the driest powders, fines and flakes.

The LS8000 is perfect for materials such as dry herbicides, plastic pellets, wood chips and fly ash, as well as virtually any liquid or fluid interface application.

This unit has no moving parts, making it an excellent replacement for floats, rotating paddles or other mechanical devices.
Features
  • Ignores significant product build up
  • Solid state, no moving parts
  • Simple installation and calibration
  • Explosion proof housing standard
  • Built-in static protection
  • User Programmable time delay
  • Remote mounted electronics
The LS8000 remote-mounted level switch is the perfect choice when it is unsafe or inconvenient to mount the electronics directly to the probe.

All calibration, time delay and fail safe adjustments are located on the remote electronics card, which can be mounted up to a mile away.  The ultra-sensitivity adjustment on the LS8000 level switch allows sensing of the driest powders, fines and flakes.

The LS8000 is perfect for materials such as dry herbicides, plastic pellets, wood chips and fly ash, as well as virtually any liquid or fluid interface application.

This unit has no moving parts, making it an excellent replacement for floats, rotating paddles or other mechanical devices.
Features
  • Ignores significant product build up
  • Solid state, no moving parts
  • Simple installation and calibration
  • Explosion proof housing standard
  • Built-in static protection
  • User Programmable time delay
  • Remote mounted electronics

Specifications

Power

  • 115 Vac (± 15 %) 50/60 Hz, 2 Watts Standard
  • 12 Vdc, 24 Vdc or 230 Vac Optional

Output

  • 2 Form C Contact DPDT Relay
  • 5 A Resistive at 125, 230 Vac; 30 Vdc

On Board Fuse

  • 250 mA

Failsafe

  • Selectable High or Low Level

Time Delay

  • Selectable ON/OFF Delay
  • Adjustable 1/8 second to 2 Hours

RF Frequency

  • Approx. 1.3 MHz

Temperature Range

  • Teflon Insulator: -30° to 450° F

Pressure

  • 300 psi @ 75° F - 3/4” NPT (Higher on Request)

Enclosure

  • Cast Aluminum, Explosion Proof - Class I, Groups C & D; Class II, Groups E, F & G

Applications

  • High or Low Level Alarms
  • Auto Tank Filling
  • Sump Control
  • Oil/Water Interface Detection
  • Dry Pump Protection
Liquids, Dry Solids & Interfaces
  • Waste/Wastewater
  • Acids/Caustics
  • Fuels/Oils
  • Slurries
  • Flour/Grains
  • Powders
  • Plastics
  • Sand/Cement
  • Wood Chips
  • Fly Ash
  • Oil/Water
  • Foam/Liquid
