Electric Actuator

Brand: Spirax Sarco
Request Information

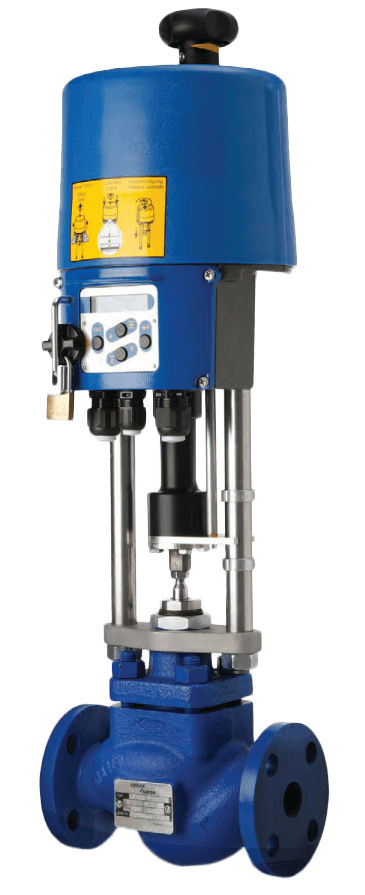

The AEL6 series of smart electric linear actuators are suitable for fitting to our range of SPIRA-TROL and QL control valves.

This new series of actuator features positioning speeds of up to 4.5 mm per second, which means that this actuator is now fast enough to be used on applications where previously only pneumatic actuation was suitable.

With increasing pressure on companies to reduce carbon emissions, we are seeing an increased demand for electrically actuated valves as they consume less energy and produce fewer carbon emissions over their lifetime when compared to a pneumatic actuator.
Features
  • Reduced lifetime cost – as energy consumption is lower.
  • Reduced carbon emissions.
  • Reduced plant downtime, through quick, easy installation and commissioning.
  • Ability to develop preventative maintenance schedules.
The AEL6 series of smart electric linear actuators are suitable for fitting to our range of SPIRA-TROL and QL control valves.

This new series of actuator features positioning speeds of up to 4.5 mm per second, which means that this actuator is now fast enough to be used on applications where previously only pneumatic actuation was suitable.

With increasing pressure on companies to reduce carbon emissions, we are seeing an increased demand for electrically actuated valves as they consume less energy and produce fewer carbon emissions over their lifetime when compared to a pneumatic actuator.
Features
  • Reduced lifetime cost – as energy consumption is lower.
  • Reduced carbon emissions.
  • Reduced plant downtime, through quick, easy installation and commissioning.
  • Ability to develop preventative maintenance schedules.
Close

Specifications

Brand

Supply Voltage

  • 230 Vac, 115 Vac, 24 Vac or 24 Vdc

Frequency

  • 50/60 Hz

Maximum Power Consumption (VA)

  • AEL6221: 30
  • AEL6321: 30
  • AEL6323: 93
  • AEL6421: 30
  • AEL6422: 93
  • AEL6532: 93
  • AEL6631: 135

Enclosure Rating

  • IP65 (for outdoor installations provide adequate shelter)

Actuator Speed (mm/s)

  • AEL6221: 0.9
  • AEL6321: 0.9
  • AEL6323: 4.5
  • AEL6421: 0.7
  • AEL6422: 1.7
  • AEL6532: 1.3
  • AEL6631: 0.4

Actuator Trust (kN)

  • AEL6221: 2.3
  • AEL6321: 4.5
  • AEL6323: 4.5
  • AEL6421: 8
  • AEL6422: 8
  • AEL6532: 14
  • AEL6631: 25

Actuator Stroke (mm)

  • AEL6221: 50
  • AEL6321: 50
  • AEL6323: 50
  • AEL6421: 50
  • AEL6422: 50
  • AEL6532: 65
  • AEL6631: 60

Ambient Limits

  • -20° C to +60° C

Analogue Position Set Valve Input

  • Adjustable 0/4-20 mA 0/2 - 10 Vdc

Positioner Function

  • Dead-band adjustable 0.5 - 5 % of set value range, Max. resolution 0.1 mA or 0.05 V at 50 mm stroke.

Active Valve Position Feedback

  • Adjustable 0/4-20 mA 0/2 - 10 Vdc

Automatic Commissioning

  • Auto scale of set value and feedback in accordance to valve travel.
  • Drives to torque-dependant stop(s) and moves throught the whole valve travel.

Characteristic Curve Correction

  • Up to 16 interpolation points, input accuracy 1 %

Torque Increase

  • Adjustable up to 150 % torque for up to 2.5 s to break away a valve in the end position.

Status Indication

  • Two LED’s under the actuator cover.

Internal Fault Monitoring

  • Torque, position set value, temperature of the electronic board, positioning deviation.

Diagnostics Function

  • Stores cumulated operation data (motor and total running time, number of motor starts) and data sets of current values (set value, feedback value, torque, temperature).
