Description

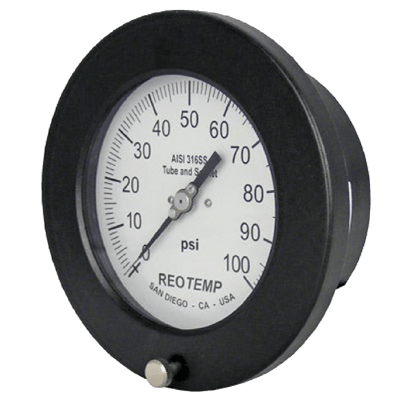

REOTEMP’s Series PI45 process gauge is designed to withstand corrosive atmospheres and media, ideal for panel builders in the heavy-industrial markets.
The hinge-front case allows for easy access to the gauge dial while still panel mounted.
Features- All Stainless Steel Internal Parts
- Internal Overload and Underload Stops
- Micro-Adjustable Pointer with Floating Zero
- Hinge-front Case for Easy Recalibration
- ASME B40.100 Design
- NACE MR-0175 and MR-0103 Compliant
Configure
Specifications
Specifications
Accuracy
- ± 0.5 %, ASME Grade 2A, (10,000 to 20,000, 1 % Upscale & 3 % Downscale)
Ambient Temperature Range
- -40° to 65° C (-40° to 150° F)
Approvals & Certifications
- ASME B40.100
Display
- White Aluminum Dial with Black Letters
Enclosure, Body Material
- Black Painted Aluminum, Hinge Front
Fill Material
- Dry
Lens
- Laminated Safety Glass
- Plastic Lens
- Tempered Safety Glass
Maximum System Pressure
- Momentary: 130 % of Scale
- Stable: 100 %
Mounting
- Lower Back/Front Flange
NACE & NIST
- NACE
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
Pressure Range
- bar: 0 to 344.7
- Inches Hg: -30 to 0
- kpa: 0 to 34,473.8
- psi: 0 to 5,000
Pressure Type
- Compound (Vacuum & Gauge Pressure)
Process Temperature
- With Diaphragm Seal: -110° to 399° C (-43° to 750° F)
- -40° to 121° C (-40° to 250° F)
Size
- Dial Size: 6”
- Dial: 4.5”
Wetted Materials
- 316 Stainless Steel
- Monel
