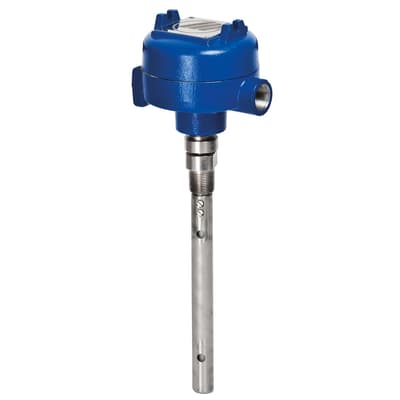

Kotron Model 82 RF Capacitance Level Transmitter

Brand: Magnetrol
Request Information
The Kotron Model 82 transmitter is one of the most cost effective level transmitters available today.

Compact in size, it employs state-of-the-art surface mount technology in an encapsulated module for a stable, accurate measurement.
Features
  • 4-20 mA isolated output signal (reversed 20-4 mA output optional).
  • Utilizes a 24 Vdc current loop for power source and signal transmission.
  • 120/240 Vac option available for four-wire applications.
  • Minimum span 50 pF.
  • Maximum span 4,000 pF.
  • Integral metering points to allow the local measurement of 4-20 mA loop current without breaking the two-wire circuit loop.
  • Power indicator LED varies in brightness with level changes.
  • ±0.25% repeatability.
  • FM, CSA, and ATEX listed intrinsically safe when used in conjunction with an approved barrier.
  • CSA explosion proof designs.
  • Available with a full range of rigid and flexible sensing probes to 5,000 psig (345 bar) and 538° C (1,000° F).
  • Input voltage of 14 to 40 Vdc at transmitter terminals.
The Kotron Model 82 transmitter is one of the most cost effective level transmitters available today.

Compact in size, it employs state-of-the-art surface mount technology in an encapsulated module for a stable, accurate measurement.
Features
  • 4-20 mA isolated output signal (reversed 20-4 mA output optional).
  • Utilizes a 24 Vdc current loop for power source and signal transmission.
  • 120/240 Vac option available for four-wire applications.
  • Minimum span 50 pF.
  • Maximum span 4,000 pF.
  • Integral metering points to allow the local measurement of 4-20 mA loop current without breaking the two-wire circuit loop.
  • Power indicator LED varies in brightness with level changes.
  • ±0.25% repeatability.
  • FM, CSA, and ATEX listed intrinsically safe when used in conjunction with an approved barrier.
  • CSA explosion proof designs.
  • Available with a full range of rigid and flexible sensing probes to 5,000 psig (345 bar) and 538° C (1,000° F).
  • Input voltage of 14 to 40 Vdc at transmitter terminals.
