Images are representations only.
Description

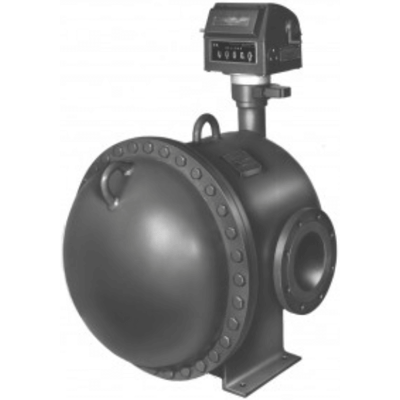

The BiRotor Meter is a positive displacement meter utilized in the most demanding applications requiring accuracy, long life and ruggedness.
The electronic "P" Series meter configuration features a sealed measuring chamber with one reluctance type electronic sensor.
The sealed electronic sensor transmits amplified signals to local or remote instruments.
A second optional sensor is available to allow dual channel pulses that are 90 degrees electrically out of phase.
Features- Extremely long service life
- Economical low maintenance
- Two simple rotors with no metal-to-metal contact are the only moving parts in the measuring chamber
- No oscillating, reciprocating or sliding parts or cranks to wear or disturb the balanced rotary
- Conforms with International standards of flowmeter accuracy
Inventory
Displaying prices & availability for Ohio, United States in USD. Change location.
Models matching criteria: 6
In Stock
In Stock
In Stock
In Stock
In Stock
Specifications
Specifications
Brand
Enclosure, Body Material
- Aluminum
- Body & End Covers for Measuring Unit: Cast Iron
- Steel
Flange Size - 3” (DN 80)
- 3” (DN 80) - PN 100
- 3” (DN 80) - PN 16
- 3” (DN 80) - PN 40
- 3” (DN 80) - PN 64
Flange Size - 6” (DN 150)
- 6” (DN 150) - 150# ANSI
- 6” (DN 150) - 300# ANSI
- 6” (DN 150) - 600# ANSI
O-Ring Material
- Viton
Pressure Range
- bar: 0 to 102
- kPa: 0 to 10,200
- psi: 0 to 1,480
