Valve, Pneumatic Wafer Sphere, Model 215, 3-Inch - Spare Parts

Brand: TechnipFMC
Model 215 Wafer Sphere 3" to 12" Digital Control Valve

The Smith Meter® Model 215 Digital Control Valve is a high-performance, wafer-sphere valve with a solenoid-controlled pneumatic/hydraulic actuator.

When used in conjunction with one of the Smith Meter Electronic Valve Controllers (e.g., AccuLoad®, or micro-Load™) Model 215 Valves provide precise, trouble-free, low pressure drop, preset loading, and/or flow control of virtually any flowing liquid.

The Model 215 is particularly well suited for applications on heavy fuel oils or lube oils where viscosity limits the use of hydraulic valves.

Model 215B V-Ball

The Smith Meter® Model 215B Digital Control Valve is a high-performance segmented equal percent, V-Ball valve with a solenoid-controlled pneumatic/hydraulic actuator.

When used in conjunction with a Smith Meter Electronic Valve Controller (e.g., AccuLoad®, or microLoad.net), the Model 215B Valve provides precise, trouble-free, low pressure drop, preset loading, and/or flow control of virtually any flowing liquid.

The Smith Meter Model 215B V-Ball valves are ideal for controlling product flow at very low flow rates, which minimizes cavitation.
Features
  • Model 215 Wafer Sphere 3" to 12" Digital Control Valve
    • Operation is independent of fluid viscosity and pressure to assure proper control under virtually all operating conditions
    • Wide fluid compatibility can be assured by proper selection of valve-wetted materials
    • Fail-safe operation since valves are spring-loaded fail-to-close
    • Pre-wired, explosion-proof junction box supplied as standard
    • Main valve meets NACE MR-01-75 requirements
  • Model 215B V-Ball
    • Operation is independent of fluid viscosity and pressure to assure proper control under virtually all operating conditions
    • Wide fluid compatibility can be assured by proper selection of valve-wetted materials
    • Fail-safe operation since valves are spring-loaded fail-to-close
    • Class V shut-off classification
    • Pre-wired, explosion-proof junction box supplied as standard.
Model 215 Wafer Sphere 3" to 12" Digital Control Valve

The Smith Meter® Model 215 Digital Control Valve is a high-performance, wafer-sphere valve with a solenoid-controlled pneumatic/hydraulic actuator.

When used in conjunction with one of the Smith Meter Electronic Valve Controllers (e.g., AccuLoad®, or micro-Load™) Model 215 Valves provide precise, trouble-free, low pressure drop, preset loading, and/or flow control of virtually any flowing liquid.

The Model 215 is particularly well suited for applications on heavy fuel oils or lube oils where viscosity limits the use of hydraulic valves.

Model 215B V-Ball

The Smith Meter® Model 215B Digital Control Valve is a high-performance segmented equal percent, V-Ball valve with a solenoid-controlled pneumatic/hydraulic actuator.

When used in conjunction with a Smith Meter Electronic Valve Controller (e.g., AccuLoad®, or microLoad.net), the Model 215B Valve provides precise, trouble-free, low pressure drop, preset loading, and/or flow control of virtually any flowing liquid.

The Smith Meter Model 215B V-Ball valves are ideal for controlling product flow at very low flow rates, which minimizes cavitation.
Features
  • Model 215 Wafer Sphere 3" to 12" Digital Control Valve
    • Operation is independent of fluid viscosity and pressure to assure proper control under virtually all operating conditions
    • Wide fluid compatibility can be assured by proper selection of valve-wetted materials
    • Fail-safe operation since valves are spring-loaded fail-to-close
    • Pre-wired, explosion-proof junction box supplied as standard
    • Main valve meets NACE MR-01-75 requirements
  • Model 215B V-Ball
    • Operation is independent of fluid viscosity and pressure to assure proper control under virtually all operating conditions
    • Wide fluid compatibility can be assured by proper selection of valve-wetted materials
    • Fail-safe operation since valves are spring-loaded fail-to-close
    • Class V shut-off classification
    • Pre-wired, explosion-proof junction box supplied as standard.
Close

Displaying prices & availability for Ohio, United States in USD. Change location.

Models matching criteria: 28

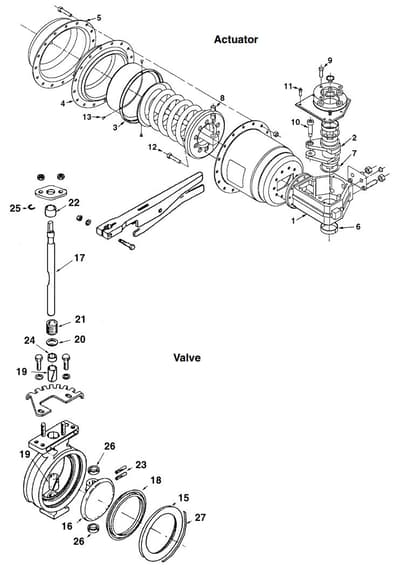

644980-405
Valve Service Kit - Item 28 view more
  • Not Illustrated
  • Note 2: Service Kit includes:  Seat, shaft seal set and insert spring
In Stock
652859-001
Body - Item 1
In Stock
652860-001
Driver Arm - Item 2
In Stock
652861-001
Diaphragm Retainer - Item 3
In Stock
652862-001
Diaphragm - Item 4
In Stock
652863-001
Diaphragm Casing - Item 5
In Stock
652864-001
Driver Arm Bearing - Item 6
In Stock
652865-001
Thrust Bearing - Item 7
In Stock
652866-001
Clevis Bearing - Item 8
In Stock
652867-001
Screw, Hex Head Cap - Item 9
In Stock
652868-001
Screw Socket Head Shoulder Screw - Item 10
In Stock
652869-001
Screw, Socket Head Cap - Item 11
In Stock
652870-001
Screw, Hex Head Cap - Item 12
In Stock
652871-001
Guide Buttons - Item 13
In Stock
652872-001
Actuator Service Kit - Item 14 view more
  • Not Illustrated
  • Note 1: Service Kit includes: Diaphragm, driver arm bearing, thrust bearing, clevis bearing and guide buttons
In Stock
652873-001
Valve Insert - Item 15
In Stock
652874-001
Disc - Item 16
In Stock
652875-001
Shaft - Item 17
In Stock
652876-001
Seat - Item 18
In Stock
652877-001
Shaft Bearing - Item 19
In Stock
652878-001
Spacer - Item 20
In Stock
652579-001
Shaft Seal Set - Item 21
In Stock
652880-001
Compression Ring - Item 22
In Stock
652881-001
Disc Pin - Item 23
In Stock
652882-001
Top Bearing Spacer - Item 24
In Stock
652883-001
Retaining Ring - Item 25
In Stock
652984-001
Thrust Bearing - Item 26
In Stock
652885-001
Insert Spring - Item 27
In Stock
Close

Specifications

Brand

Main Valve

  • Type: High-performance, Wafer-Sphere Valve - Standard
  • Type: High-performance segmented equal percent, V-Ball valve
  • Sizes: 3” to 12”, installed between Class 150 ANSI RF Companion Flanges (supplied by others)
  • Sizes: 1”,1½”, 2” and 3”, Class 150 ANSI RF
  • Operating Temperatures: -20°F (-29°C) to 100°F (38°C)
  • Operating Pressures: 285 psig (Class 150 ANSI) - Standard (100°F); Other pressures available on request
  • Pressure derated per ANSI B16.5 for temperatures greater than 100°F

Main Valve - Materials of Construction

  • Body: Carbon Steel (optional: Stainless Steel)
  • Disk and Shaft: Stainless Steel
  • Seat: PTFE, Other materials available on request
  • Meets NACE MR-0175 requirements

Actuator

  • Type: Spring - Diaphragm
  • Body: Carbon Steel
  • Diaphragm: Buna-N
  • Air Supply: Clean, dry air or gaseous nitrogen
  • Hydraulic Supply: Clean Hydraulic Fluid, Dextron II or equivalent
  • Recommended Air Supply Pressure: 60-85 psig
  • Maximum Air Supply Pressure: 100 psig
  • Operating Temperature: -20°F (-29°C) to 150°F (68°C)
