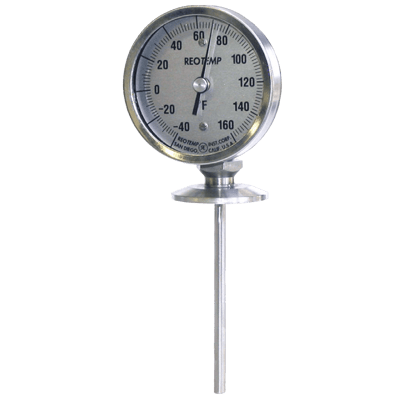

Sanitary Bi-Metal Thermometer

Brand: REOTEMP Instruments Corporation
Request Information
REOTEMP’s Sanitary Bimetal Thermometers are specially designed for direct insertion into sanitary process applications when a standard thermowell is not specified or the process environment is not exposed to pressure.

Sanitary thermometers are ideal for the food, beverage and pharmaceutical industries.
Features
  • 3-A Conformance Certificate Included
  • Made to ASME B40.3 Specifications
  • Accuracy ± 1% Full Scale (ASME B40.3)
  • All-Stainless Construction
  • Hermetically Sealed (ASME B40.3)
  • Silicone Fillable for Vibration
  • Standard and Custom Stem Lengths
  • Standard External Reset
  • Tri-Clamp® Design for Fast Installation and Removal
  • OEM Logo Dials/Custom Dials
  • Five Year Warranty
REOTEMP’s Sanitary Bimetal Thermometers are specially designed for direct insertion into sanitary process applications when a standard thermowell is not specified or the process environment is not exposed to pressure.

Sanitary thermometers are ideal for the food, beverage and pharmaceutical industries.
Features
  • 3-A Conformance Certificate Included
  • Made to ASME B40.3 Specifications
  • Accuracy ± 1% Full Scale (ASME B40.3)
  • All-Stainless Construction
  • Hermetically Sealed (ASME B40.3)
  • Silicone Fillable for Vibration
  • Standard and Custom Stem Lengths
  • Standard External Reset
  • Tri-Clamp® Design for Fast Installation and Removal
  • OEM Logo Dials/Custom Dials
  • Five Year Warranty
Close
Close

Specifications

Brand

Dial Size

  • 3", 4", 5"

Stem Length

  • 2” to 80” (5.08 to 203.2 cm)

Stem Diameter

  • 1/4” (Standard), or 3/8”

Environmental Protection

  • IP67
  • NEMA 6

Process Temperature

  • -40° to 500° C (-40° to 1,000° F)

Lens

  • Acrylic Window
  • Glass
  • Polycarbonate
  • Tempered/Laminated Safety Glass

Tri-Clamp Connection

  • 1-1/2” Tri-Clamp
  • 2” Tri-Clamp
  • 2-1/2” Tri-Clamp
  • 3” Tri-Clamp
  • 3/4” Tri-Clamp

Enclosure, Body Material

  • Stainless Steel

Fill Material

  • Silicone

Approvals & Certifications

  • 3A
  • ASME

Accuracy

  • ± 1 % of Full Scale (ASME B40.3 Grade A)

Materials of Construction

  • Dial: Aluminum
  • All Stainless Steel Construction
