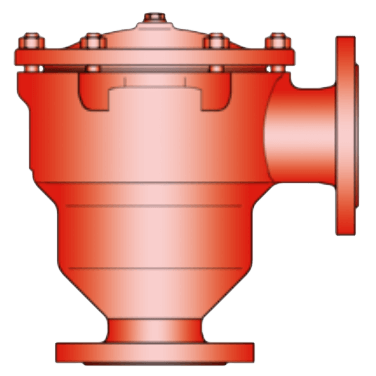

DR/EU In-Line Detonation Flame Arrester

Brand: PROTEGO
The Protego DR/EU series of in-line detonation flame arresters represents a further development of Protego flame arresters DR/ES used successfully for decades in industry.

The device protects against deflagrations, stable and unstable detonations.

The classic right angle design offers considerable maintenance advantages in comparison to a straight through design.
Features
  • Minimum number of FLAMEFILTER discs due to the effective shock absorber
  • Quick removal and installation of the complete PROTEGO flame arrester unit and of the FLAMEFILTER discs in the cage
  • Modular flame arrester unit enables each individual FLAMEFILTER discs to be replaced and cleaned
  • Provides protection from deflagration as well as from stable and unstable detonation
  • The right angle design saves pipe elbows
  • Extended application range for higher operating temperatures and pressures
  • Minimum pressure loss
The Protego DR/EU series of in-line detonation flame arresters represents a further development of Protego flame arresters DR/ES used successfully for decades in industry.

The device protects against deflagrations, stable and unstable detonations.

The classic right angle design offers considerable maintenance advantages in comparison to a straight through design.
Features
  • Minimum number of FLAMEFILTER discs due to the effective shock absorber
  • Quick removal and installation of the complete PROTEGO flame arrester unit and of the FLAMEFILTER discs in the cage
  • Modular flame arrester unit enables each individual FLAMEFILTER discs to be replaced and cleaned
  • Provides protection from deflagration as well as from stable and unstable detonation
  • The right angle design saves pipe elbows
  • Extended application range for higher operating temperatures and pressures
  • Minimum pressure loss
Close

Displaying prices & availability for Ohio, United States in USD. Change location.

Models matching criteria: 4
DR/EU-H
  • Model - In-Line Detonation Flame Arrester with Heating Jacket
Out of Stock
DR/EU-H-T
  • Model - In-Line Detonation Flame Arrester with Integrated Temperature Sensors & Heating Jacket
Out of Stock
DR/EU
  • Model - In-Line Detonation Flame Arrester
Out of Stock
DR/EU-T
  • Model - In-Line Detonation Flame Arrester with Integrated Temperature Sensor
Out of Stock
Close
Close

Specifications

Brand

Approvals & Certifications

  • EN ISO 16852, 6358
  • TÜV (Technischer Uberwachungsverein)

Approvals & Certifications

  • ATEX
  • CEN
  • IEC
  • NEC Groups C, D MESG ≥ 0.65 mm

Cover Material

  • Cover with Shock Absorber: Hastelloy
  • Cover with Shock Absorber: Stainless Steel
  • Cover with Shock Absorber: Steel

Enclosure Finish

  • ECTFE

Enclosure, Body Material

  • Carbon Steel
  • Hastelloy
  • Stainless Steel

Environmental Protection

  • Explosion-proof Groups IIA to IIB3

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# ASME B16.5

Flange Size - 1-1/4” (DN 32)

  • 1-1/4” (DN 32) - 150# ASME B16.5

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150# ASME B16.5

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150# ASME B16.5

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ASME B16.5

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ASME B16.5

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ASME B16.5

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150# ASME B16.5

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ASME B16.5

Flange Type

  • Raised Face (RF)
  • Smooth Finish

Materials of Construction

  • Flamefilter Cage, Spacer: Hastelloy
  • Flamefilter: Copper
  • Flamefilter: Inconel
  • Flamefilter: Tantalum
  • Heating Jacket, Flamefilter Cage, Spacer: Stainless Steel
  • Heating Jacket, Flamefilter Cage: Steel

O-Ring Material

  • FPM
  • PTFE

Operating Pressure

  • psi: 17.4 to 23.26 (kPa: 120 to 160, bar: 1.2 to 1.6)

Operating Temperature

  • 0° to 60° C (32° to 140° F)

Pressure Type

  • Absolute
