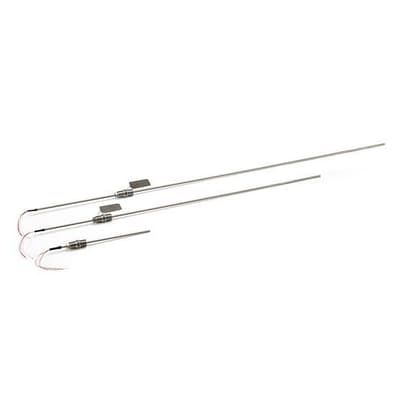

58C Cut-to-Fit Temperature Sensor

Brand: Rosemount
Request Information
Engineered as a customizable solution, the Rosemount 58C Cut-to-Fit Temperature Sensor is an industry-standard, platinum resistance temperature detector (RTD) sensor.

This sensor offers cut-to-fit capability and may be shortened to any length via a standard tube cutter, which eliminates the need to stock large selections of sensors in specific lengths. For added application flexibility, this adjustable sensor can be installed in a thermowell with either a fixed or adjustable mounting fitting.
Features
  • Designed as an industry-standard, platinum RTD sensor for linear and accurate process temperature measurements
  • Cut-to-fit capability allows sensor to be shortened with a standard tube cutter to meet application specifications
  • Available in 12-, 24-, 36-, and 48-in. lengths for application flexibility
  • Customizable design eliminates the need to stock a large selection of sensors in specific lengths for cost-efficiency
  • Variety of connection heads and mounting fittings available to fulfill process requirements
Engineered as a customizable solution, the Rosemount 58C Cut-to-Fit Temperature Sensor is an industry-standard, platinum resistance temperature detector (RTD) sensor.

This sensor offers cut-to-fit capability and may be shortened to any length via a standard tube cutter, which eliminates the need to stock large selections of sensors in specific lengths. For added application flexibility, this adjustable sensor can be installed in a thermowell with either a fixed or adjustable mounting fitting.
Features
  • Designed as an industry-standard, platinum RTD sensor for linear and accurate process temperature measurements
  • Cut-to-fit capability allows sensor to be shortened with a standard tube cutter to meet application specifications
  • Available in 12-, 24-, 36-, and 48-in. lengths for application flexibility
  • Customizable design eliminates the need to stock a large selection of sensors in specific lengths for cost-efficiency
  • Variety of connection heads and mounting fittings available to fulfill process requirements
Close

Specifications

Brand

Insertion 'U' Length

  • 12” to 48”

Materials of Construction

  • Connection Head: Aluminum
  • Connection Head: Polypropylene
  • Rosemount Stainless Steel Connection
  • Sensor: Platinum

NPT Connection

  • 1/2”-14 ANPT Compression or Spring Loaded Fitting

Operating Temperature

  • -50° to 200° C (-58° to 392° F)

Resistance

  • Insulation Resistance: 500 megaohms Min. when Measured at 50 Vdc at Room Temperature

Stability

  • ± 0.035 %, Max.
