Images are representations only.

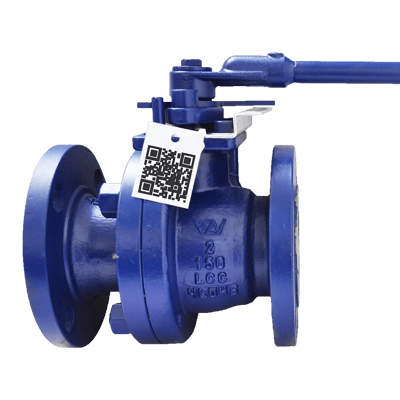

API 6D 2 Piece Floating Ball Valve

Brand: Ranger Valve America Ltd
Request Information
The Ranger™ series of 2 piece floating ball valves have been engineered to meet both general service and heavy duty applications including petroleum, petro-chemical, and industrial.

Ranger’s valves are designed in accordance with API 6D and CSA Z245.15, they are available in a variety of configurations and materials to meet your specific operational needs.

Combined with our 24/48 month extended warranty, Ranger™ valves not only meet but exceed industry standards.
Features
Design Standards
  • Two-piece bolted body design for ease of field service and maintenance
  • Cast steel 150, 300 & 600
  • Forged steel 600, 900 & 1500
  • Firesafe design
  • Standard valves meet NACE
  • Extreme low torque for actuation savings
  • ISO 5211 mounting flanges
  • High life cycle
  • Independent dual body seals
  • Locking device to API 608
  • All o-rings are AED (anti-explosive decompression) design
  • Gear operators and lifting lugs on 6” bore and larger
  • Standard document package BS/EN 10204-3.1
  • Low emission capable due to O-ring design
  • Exceeds ASME B16.34 minimum wall thickness
  • RANGER three-piece forged trunnion ball valves and two-piece cast floating ball valves are certified for use in Safety Integrity Level (SIL 3) applications
Stem Design
  • Blowout proof stem
  • Double anti-static stem
  • Adjustable packing
  • Triple independent low emission stem seals ensure stem seal integrity
  • Two-bolt gland flange
Seat Design
  • Unique wide flexible seat rings
  • Absolute seal in low and high pressure
  • RPTFE (15-20% carbon fibre) in 150 & 300 ASME; Devlon V in 600 -1500 ASME
  • Self-relieving seats for automatic internal cavity relief
Optional
  • Body may be coated for corrosion protection
The Ranger™ series of 2 piece floating ball valves have been engineered to meet both general service and heavy duty applications including petroleum, petro-chemical, and industrial.

Ranger’s valves are designed in accordance with API 6D and CSA Z245.15, they are available in a variety of configurations and materials to meet your specific operational needs.

Combined with our 24/48 month extended warranty, Ranger™ valves not only meet but exceed industry standards.
Features
Design Standards
  • Two-piece bolted body design for ease of field service and maintenance
  • Cast steel 150, 300 & 600
  • Forged steel 600, 900 & 1500
  • Firesafe design
  • Standard valves meet NACE
  • Extreme low torque for actuation savings
  • ISO 5211 mounting flanges
  • High life cycle
  • Independent dual body seals
  • Locking device to API 608
  • All o-rings are AED (anti-explosive decompression) design
  • Gear operators and lifting lugs on 6” bore and larger
  • Standard document package BS/EN 10204-3.1
  • Low emission capable due to O-ring design
  • Exceeds ASME B16.34 minimum wall thickness
  • RANGER three-piece forged trunnion ball valves and two-piece cast floating ball valves are certified for use in Safety Integrity Level (SIL 3) applications
Stem Design
  • Blowout proof stem
  • Double anti-static stem
  • Adjustable packing
  • Triple independent low emission stem seals ensure stem seal integrity
  • Two-bolt gland flange
Seat Design
  • Unique wide flexible seat rings
  • Absolute seal in low and high pressure
  • RPTFE (15-20% carbon fibre) in 150 & 300 ASME; Devlon V in 600 -1500 ASME
  • Self-relieving seats for automatic internal cavity relief
Optional
  • Body may be coated for corrosion protection
Close
Close

Specifications

Brand

Nominal Size

  • 1/2" to 12"

Port Type

  • Full Bore
  • Reduced Bore

Body Material

  • A216 WCB
  • A105N
  • LCC
  • LF2
  • CF8M
  • F316
  • Duplex
  • Super Duplex

Seat Material

  • RPTFE
  • Devlon V
  • PEEK
  • Nylon
  • Delrin
  • Metal
  • PCTFE

Seal Material

  • Graphite

Stem/Ball Material

  • A105N+ENP
  • LF2+ENP
  • 4140+ENP
  • F316
  • F6A
  • F51
  • F53
  • F55

NACE & NIST

  • NACE MR 0175

Certifications & Approvals

  • SIL 3
  • CSA
  • API
  • ISO
  • ASME
Close

Applications

  • Petroleum
  • Petrochemical
  • Industrial
Close
