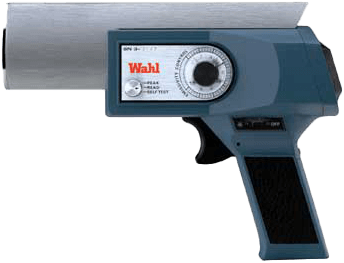

DHSA26 Series Infrared Thermometers

Brand: Palmer Wahl Instruments, Inc
The DHSA26 High Performance Heat Spy features superior accuracy and sensitivity 0 to 2000°F (-20 to 1000°C).
Accuracy is ±0.3% of full scale. Repeatability of ±2°F. LED Display.
Anti-reflective filter for accurate use in strong sunlight or other light sources.
Applications include all normal materials, including glass surfaces.
The DHS26 Series is not affected by IR heaters, carbon dioxide or water vapor, and will not measure through glass. 8 to 14 Microns.
3 Year Warranty. Includes Carrying Case, Batteries, Owner's Manual, Trigger Lock, AC Adapter, 110V or 220V.
Enclosed Optical Sight.
Factory Mutual Model.
Features
  • Wider Temperature Range: 0°to 2000°F (-20° to 1000°C)
  • Accuracy of ±0.3% of Full Scale
  • Applications Include All Normal Materials, Including Glass Surfaces
  • Sighting and Display Options Available
  • 3 Year Warranty
The DHSA26 High Performance Heat Spy features superior accuracy and sensitivity 0 to 2000°F (-20 to 1000°C).
Accuracy is ±0.3% of full scale. Repeatability of ±2°F. LED Display.
Anti-reflective filter for accurate use in strong sunlight or other light sources.
Applications include all normal materials, including glass surfaces.
The DHS26 Series is not affected by IR heaters, carbon dioxide or water vapor, and will not measure through glass. 8 to 14 Microns.
3 Year Warranty. Includes Carrying Case, Batteries, Owner's Manual, Trigger Lock, AC Adapter, 110V or 220V.
Enclosed Optical Sight.
Factory Mutual Model.
Features
  • Wider Temperature Range: 0°to 2000°F (-20° to 1000°C)
  • Accuracy of ±0.3% of Full Scale
  • Applications Include All Normal Materials, Including Glass Surfaces
  • Sighting and Display Options Available
  • 3 Year Warranty
Models matching criteria: 8
High Performance Heat Spy, LED, 8 to 14 Microns, 0 to 2000°F (-20 to 1000°C), Enclosed Optical Sight
Out of Stock
High Performance Heat Spy, LED, 8 to 14 Microns, 0 to 2000°F (-20 to 1000°C), Laser Sight, 1mW
Out of Stock
High Performance Heat Spy, LED, 8 to 14 Microns, 0 to 2000°F (-20 to 1000°C), Laser Sight, 5mW
Out of Stock
High Performance Heat Spy, LED, 8 to 14 Microns, 0 to 2000°F (-20 to 1000°C), Telescopic Sight
Out of Stock
High Performance Heat Spy, LCD, 8 to 14 Microns, 0 to 2000°F (-20 to 1000°C), Enclosed Optical Sight
Out of Stock
High Performance Heat Spy, LCD, 8 to 14 Microns, 0 to 2000°F (-20 to 1000°C), Laser Sight, 1mW
Out of Stock
High Performance Heat Spy, LCD, 8 to 14 Microns, 0 to 2000°F (-20 to 1000°C), Laser Sight, 5mW
Out of Stock
Hig Performance Heat Spy, LCD, 8 to 14 Microns, 0 to 2000°F (-20 to 1000°C), Telescopic Sight
Out of Stock

Specifications

Temperature Range

  • 0° to 2000° F
  • -20° to 1000° C

Distance to Spot Ratio

  • 20:1

Spectral Range

  • 8 to 14 µm

Emissivity

  • Adjustable 0.2 - 1.0

Accuracy at 77° F ±5°

  • ± 0.3 % Full Scale

Repeatability

  • ± 2° F

Resolution

  • 1° F / °C

Response Time to 95% of Reading

  • 1 second

Operating Temperature

  • 25° to 125° F (-4° to 52° C)

Temperature Coefficient

  • ± 0.1 deg/deg

Practical Working Distance

  • 0 to 40 feet

Sighting System

  • Enclosed, Laser, or Telescope

Output to Recorder

  • 1 mV/deg.

Power Supply

  • LCD 1 - 9 V Alkaline Battery, LED 2 - 6 V Batteries

Battery Life

  • 40 hours Laser Operation Will Reduce Battery Life

Weight (Lbs)

  • 2.2 lbs (0.99 kg)
  • (T) 2.8 lbs (01.27 kg)

Included Accessories

  • User Manual, LCD, 1-9 V Battery, LED, 2-6 V Alkaline Batteries, Carrying Case, Trigger Lock, AC Adapter (Specify 110 V or 220 Vac)
