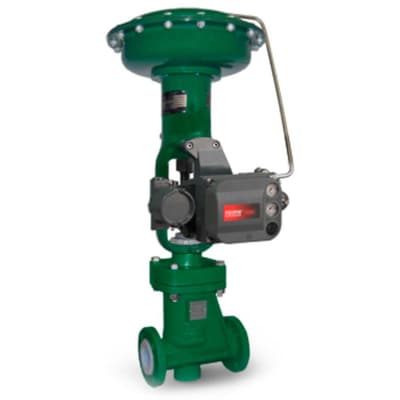

RSS Lined Globe Valve

Brand: Fisher
Request Information
The Fisher RSS valve is intended for use in applications involving severely corrosive and toxic flowing media, and is well-suited for pure media applications, as well.

The RSS valve body provides an economical alternative to alloy valve bodies in a wide variety of applications.
Features
  • The perfluoroalkoxy resin-lined assembly provides corrosion protection by shielding metal parts from the process media, making it ideal for controlling severely corrosive media.
  • Because all metal parts are shielded from the process fluid, the use of expensive alloys is not necessary.
  • Lining thickness is a minimum of 5 millimeters at all areas where the valve is exposed to process flow. Transfer molding techniques provide for excellent consistency, density, and low permeability. Transfer molded PFA material is translucent.
  • Greater safety under vacuum and high temperature service is achieved by dovetail anchorings which provide a mechanical bond, minimizing the possibility of detachment of the lining from the cast valve body.
  • The top entry design eases in-line maintenance.
  • The PTFE bellows seal is leak tight and, with proper use and maintenance, can have an expected life cycle exceeding 500,000 full stroke cycles.
The Fisher RSS valve is intended for use in applications involving severely corrosive and toxic flowing media, and is well-suited for pure media applications, as well.

The RSS valve body provides an economical alternative to alloy valve bodies in a wide variety of applications.
Features
  • The perfluoroalkoxy resin-lined assembly provides corrosion protection by shielding metal parts from the process media, making it ideal for controlling severely corrosive media.
  • Because all metal parts are shielded from the process fluid, the use of expensive alloys is not necessary.
  • Lining thickness is a minimum of 5 millimeters at all areas where the valve is exposed to process flow. Transfer molding techniques provide for excellent consistency, density, and low permeability. Transfer molded PFA material is translucent.
  • Greater safety under vacuum and high temperature service is achieved by dovetail anchorings which provide a mechanical bond, minimizing the possibility of detachment of the lining from the cast valve body.
  • The top entry design eases in-line maintenance.
  • The PTFE bellows seal is leak tight and, with proper use and maintenance, can have an expected life cycle exceeding 500,000 full stroke cycles.
Close

Specifications

Brand

Approvals & Certifications

  • Fugitive Emissions, PED, SIL Capable

Critical Service

  • Low Flow, Corrosive, General Service

Flow Characteristics

  • Equal Percentage

Material

  • Ductile Iron (PTFE Lined)

Operating Temperature

  • Standard Temperature

Other Configurations

  • Contact Your Local Emerson Business Partner or Sales Office to Learn About Additional Specifications or Options for This Product.

Pressure Class

  • Class 150, Class 300

Process Connection Type

  • Flanged

Shutoff Class

  • Class VI (FCI 70-2)

Valve Size

  • NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4

Valve Size Standard

  • NPS
