Description

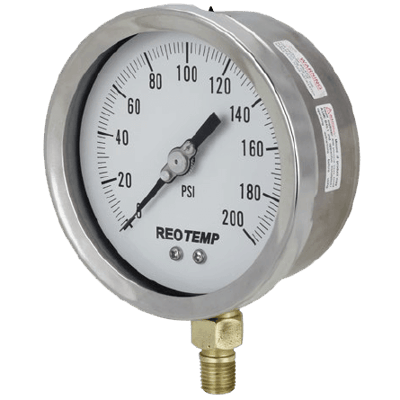

REOTEMP’s Series PG25/40S gauges are an economical choice where ambient corrosion and vibration are of concern.
The stainless steel case and ring offer excellent corrosion resistance, and are fillable for applications with vibration.
The PG25/40S is suitable for all fluids compatible with copper alloys.
Features- Stainless Steel Case
- Copper Alloy Wetted Parts
- Glycerin Filled or Dry/Fillable
- Removable Bayonet, Adjustable Pointer
- ASME B40.100 Design
Configure
Specifications
Specifications
Accuracy
- 2 to 1 to 2 %, ASME Grade A
- 3-2-3 %, ASME Grade B
Ambient Temperature Range
- -40° to 60° C (-40° to 140° F)
Approvals & Certifications
- ASME B40.100
Case Material
- 304 Stainless Steel
Dial Size
- 2.5” (63 mm)
- 3.5” (88.9 mm)
- 4” (100 mm)
Display
- White Aluminum Dial with Black Letters
Fill Material
- Dry
- Glycerin
- Glycerin & Water
Lens
- Glass Lens
- Plastic Lens
Maximum System Pressure
- Momentary: 110 % of Scale
- Stable: 100 %
Mounting
- Bottom Mounting
- Bottom / Rear Flange Mounting
- Center Back 'U' Clamp Mounting
- Center Back Mounting
- Center Back / Front Flange Mounting
- Panel Mounting Adapters
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
Pressure Range
- bar: 0 to 41.36
- Inches Hg: -30 to 0
- psi: 0 to 600
Pressure Type
- Compound (Vacuum & Gauge Pressure)
Process Temperature
- -40° to 65.6° C (-40° to 150° F)
Wetted Materials
- Copper Alloy
Environment Protection
- NEMA 4X/IP65
