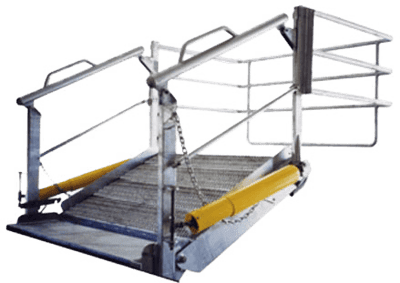

Flat Ramp Gangway (FLT)

Part Number: FLT Brand: Safe Harbor Access Systems

Flat Ramp Gangway

Price
Request a Quote
Stock
Out of Stock
Request Information
Our FLT model is a flat ramp gangway. Primarily used for hopper car and hopper truck applications where vehicle height is uniform. All of our systems are custom made to fit your specific application.
Features
  • Working range of 15 degrees below horizontal and 15 degrees above horizontal
  • Self supporting with a 500 lb. load capacity
  • High performance and safety locking extension
  • 1-1/4" SCH. 40 pipe provides added comfort and increased strength
  • Oversized safety yellow top and midrails provide opertator comfort and high visibility
  • Spring counter balance with chemical resistant cover
  • Galvanized base tread provices added strength
  • Equipped with our standard 22" telescoping extension
  • 4 bolt flange bearing at the main pivot point provides strength and ease of movement, ideal for high use applications
  • Modular base tread allows for quick installaion helping to minimize downtime
  • Open serrated walk surface helps to maximize footing and minimize water, product, and ice accumulation
Our FLT model is a flat ramp gangway. Primarily used for hopper car and hopper truck applications where vehicle height is uniform. All of our systems are custom made to fit your specific application.
Features
  • Working range of 15 degrees below horizontal and 15 degrees above horizontal
  • Self supporting with a 500 lb. load capacity
  • High performance and safety locking extension
  • 1-1/4" SCH. 40 pipe provides added comfort and increased strength
  • Oversized safety yellow top and midrails provide opertator comfort and high visibility
  • Spring counter balance with chemical resistant cover
  • Galvanized base tread provices added strength
  • Equipped with our standard 22" telescoping extension
  • 4 bolt flange bearing at the main pivot point provides strength and ease of movement, ideal for high use applications
  • Modular base tread allows for quick installaion helping to minimize downtime
  • Open serrated walk surface helps to maximize footing and minimize water, product, and ice accumulation
Close

Specifications

Brand

Extension Length

  • 22” Standard

Load Capacity

  • 500 lbs

Working Range

  • 15° Below Horizontal
  • 15° Above Horizontal
