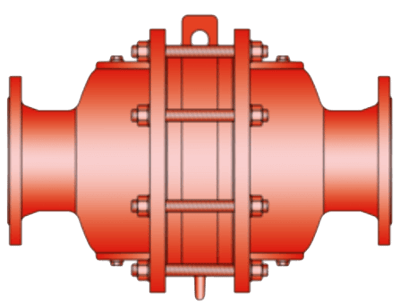

DA-UB In-Line Detonation Flame Arrester

Brand: PROTEGO
The in-line detonation flame arresters type Protego DA-UB are the newest generation of flame arresters.

On the basis of fluid dynamic and explosion-dynamic calculations and decades of experience from field tests, a line was developed that offers minimum pressure loss and maximum safety.

The device uses the Shock Wave Guide Tube Effect (SWGTE) to separate the flame front and shock wave.

The result is an in-line detonation flame arrester without a classic shock absorber, and the use of flame-extinguishing elements is minimized.
Features
  • Optimized performance from the patented Shock Wave Guide Tube Effect (SWGTE)
  • Less number of FLAMEFILTER discs from the use of the patented shock tube (SWGTE)
  • Modular flame arrester unit enables each individual FLAMEFILTER discs to be replaced and cleaned
  • Different series allow increase of FLAMEFILTER size for given flange connection resulting in lower pressure drop across the device
  • Service-friendly design
  • Expanded application range for higher operating temperatures and pressures
  • Bidirectional operation as well as any direction of flow and installation position
  • Possible installation of temperature sensors
  • Minimum pressure loss
The in-line detonation flame arresters type Protego DA-UB are the newest generation of flame arresters.

On the basis of fluid dynamic and explosion-dynamic calculations and decades of experience from field tests, a line was developed that offers minimum pressure loss and maximum safety.

The device uses the Shock Wave Guide Tube Effect (SWGTE) to separate the flame front and shock wave.

The result is an in-line detonation flame arrester without a classic shock absorber, and the use of flame-extinguishing elements is minimized.
Features
  • Optimized performance from the patented Shock Wave Guide Tube Effect (SWGTE)
  • Less number of FLAMEFILTER discs from the use of the patented shock tube (SWGTE)
  • Modular flame arrester unit enables each individual FLAMEFILTER discs to be replaced and cleaned
  • Different series allow increase of FLAMEFILTER size for given flange connection resulting in lower pressure drop across the device
  • Service-friendly design
  • Expanded application range for higher operating temperatures and pressures
  • Bidirectional operation as well as any direction of flow and installation position
  • Possible installation of temperature sensors
  • Minimum pressure loss
Models matching criteria: 4
  • Model - In-Line Detonation Flame Arrester
Out of Stock
  • Model - In-Line Detonation Flame Arrester with Two Integrated Temperature Sensors
Out of Stock
  • Model - In-Line Detonation Flame Arrester with Heating Jacket
Out of Stock
  • Model - In-Line Detonation Flame Arrester with Integrated Temperature Sensor
Out of Stock

Specifications

Brand

Approvals & Certifications

  • ATEX
  • CEN
  • IEC
  • NEC Groups C, D MESG ≥ 0.65 mm

Approvals & Certifications

  • EN ISO 16852, 6358
  • TÜV (Technischer Uberwachungsverein)

Enclosure Finish

  • ECTFE

Enclosure, Body Material

  • Hastelloy
  • Stainless Steel
  • Steel

Environmental Protection

  • Explosion-proof Groups IIA to IIB3

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150# ASME B16.5

Flange Size - 12” (DN 300)

  • 12” (DN 300) - 150# ASME B16.5

Flange Size - 14” (DN 350)

  • 14” (DN 350) - 150# ASME B16.5

Flange Size - 16” (DN 400)

  • 16” (DN 400) - 150# ASME B16.5

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ASME B16.5

Flange Size - 24” (DN 600)

  • 24” (DN 600) - 150# ASME B16.5

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ASME B16.5

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ASME B16.5

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ASME B16.5

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# ASME B16.5

Flange Type

  • Raised Face (RF)
  • Smooth Finish

Gasket Material

  • PTFE

Materials of Construction

  • Flamefilter Cage, Spacer: Hastelloy
  • Flamefilter: Copper
  • Flamefilter: Inconel
  • Flamefilter: Tantalum
  • Heating Jacket, Flamefilter Cage, Spacer: Stainless Steel
  • Heating Jacket, Flamefilter Cage: Steel

Operating Pressure

  • psi: 0 to 26.1 (kPa: 0 to 180, bar: 0 to 1.8)

Operating Temperature

  • 0° to 60° C (32° to 140° F)

Pressure Type

  • Absolute
