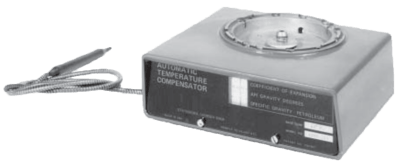

Model 4400 Automatic Temperature Compensator

Brand: Brodie International
Request Information
The Brodie Model 4400 Automatic Temperature Compensator is a device which automatically and continuously corrects a meter counter to indicate the volume that a metered delivery would occupy at a selected base temperature.

Base temperature is either 60°F, 20°C or 15°C depending upon which model ATC is selected.

Each ATC is equipped with a locknut position to provide an uncorrected counter readout with respect to the base temperature (a feature used primarily during calibration procedures).
Features
  • Base Temperature Lockout Feature - Allows proving of meter at gross (uncompensated) volume. Lock-out provides 1:1 ratio through ATC when engaged
  • Three scales provided - Coefficient of expansion, API gravity degrees and specific gravity
  • Designed for easy field adjustment of scale setting
  • Applicable to a wide range of industrial liquids
  • Compact, streamlined design
The Brodie Model 4400 Automatic Temperature Compensator is a device which automatically and continuously corrects a meter counter to indicate the volume that a metered delivery would occupy at a selected base temperature.

Base temperature is either 60°F, 20°C or 15°C depending upon which model ATC is selected.

Each ATC is equipped with a locknut position to provide an uncorrected counter readout with respect to the base temperature (a feature used primarily during calibration procedures).
Features
  • Base Temperature Lockout Feature - Allows proving of meter at gross (uncompensated) volume. Lock-out provides 1:1 ratio through ATC when engaged
  • Three scales provided - Coefficient of expansion, API gravity degrees and specific gravity
  • Designed for easy field adjustment of scale setting
  • Applicable to a wide range of industrial liquids
  • Compact, streamlined design
Close

Specifications

Brand

Enclosure, Body Material

  • Base Plate & Cover: Die Cast Aluminum

NPT Connection

  • 3/4” NPT Male
