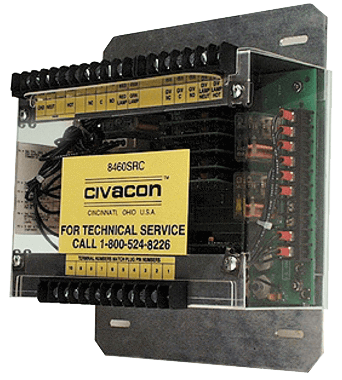

Model 8460SRC Scully Replacement Chassis Opti-Therm Rack Monitor

Brand: Civacon Corporate
Request Information
The Model 8460SRC Opti-Therm Rack Monitor is a direct chassis replacement that can be used to upgrade the Scully ST-6 or BICLOPS® rack-control monitors.

The Model 8360SRC puts Civacon Opti-Therm technology, including automatic switching and internal ground verification for API-compatible Optic and Thermistor technology, all in one box.
Features
  • Upgrades Scully ST-6 and BICLOPS® Rack Control Monitors
  • Simple, Drop-in Replacement Chassis
  • Easy Installation Requires only Hand Tools and Less than One Hour of Downtime
  • Accepts Existing Wiring from a 120VAC Power Supply
  • Compatible with All 5-wire Optic, Thermistor and Thermo-Optic Sensors
  • Loads All Trailers Equipped with any Brand/Style of Overfill-detection System
  • Ability to Install an External Ground-verification Status Light
  • Overfill Detection and Ground Verification Signaled to Terminal Automation System - TAS
  • Maximum Loading Flexibility with no Compromise of Safety
  • Suitable for Class 1, Division 1, Group D Hazardous-location Applications
The Model 8460SRC Opti-Therm Rack Monitor is a direct chassis replacement that can be used to upgrade the Scully ST-6 or BICLOPS® rack-control monitors.

The Model 8360SRC puts Civacon Opti-Therm technology, including automatic switching and internal ground verification for API-compatible Optic and Thermistor technology, all in one box.
Features
  • Upgrades Scully ST-6 and BICLOPS® Rack Control Monitors
  • Simple, Drop-in Replacement Chassis
  • Easy Installation Requires only Hand Tools and Less than One Hour of Downtime
  • Accepts Existing Wiring from a 120VAC Power Supply
  • Compatible with All 5-wire Optic, Thermistor and Thermo-Optic Sensors
  • Loads All Trailers Equipped with any Brand/Style of Overfill-detection System
  • Ability to Install an External Ground-verification Status Light
  • Overfill Detection and Ground Verification Signaled to Terminal Automation System - TAS
  • Maximum Loading Flexibility with no Compromise of Safety
  • Suitable for Class 1, Division 1, Group D Hazardous-location Applications
Close

Specifications

Brand

Operating Temperature

  • -40° F to 158° F
  • -40° C to 70° C

Input Requirements

  • 120 Vac 60 Hz
  • 15 VA - Standard

Output Relay Contacts

  • Ground Verified: 240 Vac - 5A DPDT - Overfill
  • Permissive: 240 Vac - 5A DPDT

Response Time

  • 0.5 Seconds Max.
  • Dry to Wet Transition

Electrical Connections

  • Convenient Terminal Strips

Housing Material

  • Aluminum and Lexan®

Approvals

  • Factory Mutual
  • CSA

Installation Information

  • Provided with the monitor.
  • Can also be accessed and downloaded via website.
