Description

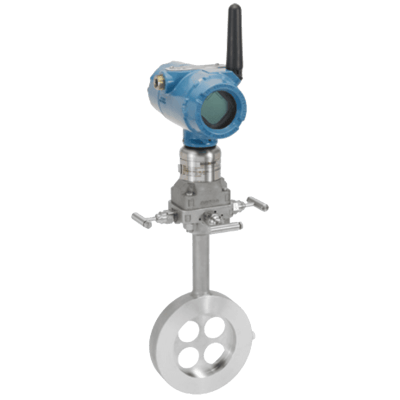

Rosemount 3051SFC compact conditioning flowmeters reduce straight piping requirements to 2D upstream and 2D downstream from most flow disturbances.
Compact flowmeters can be simply installed between any existing raised-face flanges. Rosemount 3051SF Flowmeters integrate industry leading transmitters with industry leading primary elements.
Features- Flowmeters are factory configured to meet your application needs
- MultiVariable capabilities allow scalable flow compensation
- HART® 4-20, Wireless, and FOUNDATION™ fieldbus protocols
- Ultra for Flow for improved flow performance across wider flow ranges
- Integral temperature measurement
- Advanced Diagnostics
- Direct or remote mount configurations available
Configure
Specifications
Specifications
Brand
Accuracy
- ± 0.8 % of Flow Rate at 14: 1 Flow Turndown
- ± 1.00 % of Flow Rate at 8: 1 Flow Turndown
- ± 1.55 % of Flow Rate at 14: 1 Flow Turndown
- ± 1.60 % of Flow Rate at 8: 1 Flow Turndown
Alarm
- Custom Alarm & Saturation Signal Levels
- NAMUR Alarm & Saturation Signal Levels
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F)
Applications
- Marine & Offshore Applications
Approvals & Certifications
- ATEX
- CSA
- FM
- IEC Ex
- TIIS
Conduit Connection
- A Size Mini, 4-Pin Male Connector (minifast)
- M12, 4-Pin, Male Connector (eurofast)
Configuration
- 4-20 mA HART
- FOUNDATION Fieldbus Protocols
- Wireless Protocols
Damping Adjustment
- User Configurable from 0 to 60 seconds
Display
- PlantWeb LCD Display
- Remote Mount LCD Display & Interface
Drain, Vent Position
- Without Drain/Vent
Electrical Connectors
- 1/2” NPT
- G 1/2”
- M20 x 1.5
Electromagnetic Interference Effect
- Meets All Relevant Requirements of EN 61326 & NAMUR NE-21
Enclosure Finish
- Polyurethane Paint
Enclosure, Body Material
- 316 Stainless Steel
- Aluminum
Environmental Protection
- IP66
- IP68
- NEMA 4X
Fill Material
- Inert Oil Fill
- Silicone Oil
Flange Material
- 316 Stainless Steel
- Hastelloy C-276
Humidity
- 0 to 100 % Relative Humidity
Input Power
- 4-20 mA HART: 10.5-42.4 Vdc
- FOUNDATION Fieldbus: 9-32 Vdc
Mounting
- Direct Mounting
- Remote Mounting
NACE & NIST
- NACE MR-0103, MR-0175
O-Ring Material
- Glass-Filled PTFE
- Graphite-Filled PTFE
Output
- 2.4 GHz DSSS
- 2-Wire 4-20 mA
Overpressure & Static Pressure Limits
- psia: 0.5 to 3,626 (bar: 0.03 to 250, kPa: 3.447 to 25,000)
Power Supply Effect
- < ± 0.005 % of Calibrated Span Per Volt Change in Voltage at the Transmitter Terminals
Pressure Range
- bar: 0.979 to 250
- Inches WC: 0 to 1,000 (mbar: 0 to 2488)
- kPa: 97.91 to 25,000
- psi: -14.2 to 3,626
Pressure Type
- Absolute
- Differential
- Gauge
Process Temperature
- -40° to 149° C (-40° to 300° F)
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration Effect
- > ± 0.1 % of URL
Volumetric Displacement
- > 0.005”³ (0.08 cm³)
Wetted Materials
- 316 Stainless Steel
