Description

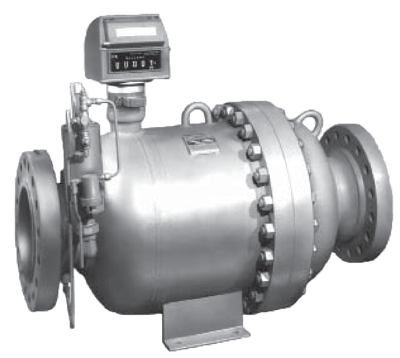

The BiRotor Meter is a positive displacement meter utilized in the most demanding applications requiring accuracy, long life and ruggedness.
The electronic "P" Series meter configuration features a sealed measuring chamber with one reluctance type electronic sensor.
The sealed electronic sensor transmits amplified signals to local or remote instruments.
A second optional sensor is available to allow dual channel pulses that are 90 degrees electrically out of phase.
Features- Double case design
- Extremely long service life
- Economical low maintenance
- Two simple rotors with no metal-to-metal contact
- No oscillating, reciprocating or sliding parts or cranks to wear or disturb the balanced rotary action
- Sustained Measurement Accuracy
- Conforms with international standards of flowmeter accuracy
Inventory
Displaying prices & availability for Ohio, United States in USD. Change location.
Models matching criteria: 4
In Stock
In Stock
In Stock
Specifications
Specifications
Brand
Enclosure, Body Material
- Housing: Welded Steel Construction Combining Steel Castings & Drawn Steel Plate, Counter Base Plate Body: Steel
- Measuring Unit Body & End Covers: Cast Iron
Flange Size - 12” (DN 300)
- 12” (DN 300) - 150# ANSI
- 12” (DN 300) - 300# ANSI
- 12” (DN 300) - 600# ANSI
- 12” (DN 300) - PN 100
- 12” (DN 300) - PN 16
- 12” (DN 300) - PN 25
- 12” (DN 300) - PN 40
- 12” (DN 300) - PN 64
O-Ring Material
- Viton
Pressure Range
- bar: 0 to 102
- kPa: 0 to 10,200
- psi: 0 to 1,480
