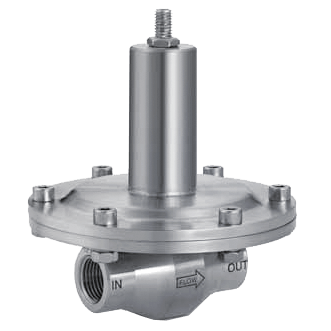

Images are representations only.
Description
Features
- Spring-loaded pressure control
- Diaphragm sensing mechanism
- Large diaphragm to seat ratio
- Compliance with FDA/USP class VI
- Maximum Inlet Pressure: psig: 14.5 (bar: 1, kPa: 99.9)
- Pressure Control Range: psig: 0.72 to 11.6 (bar: 0.5 to 0.8, kPa: 5 to 8)
- Operating Temperature: -20 to 100°C (-4 to 212°F)
- Connections: 1/2", ISO/BSP Parallel Thread, ASME Flange, DIN Flange, Sanitary Clamp
- Materials of Construction:
- Enclosure: 316L Stainless Steel
- Poppet: 316L Stainless Steel
- Diaphragm: PTFE
- Seat: 316L Stainless Steel
- O-Ring: Kalrez
Inventory
Displaying prices & availability for Ohio, United States in USD. Change location.
Models matching criteria: 112
- Process Connection - Female ISO/BSP Parallel Thread
- Pressure Class - Not Required
- Flange Facing - None
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Class - DN Class PN 16
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - Sanitary Clamp (BSOD)
- Pressure Class - Not Required
- Flange Facing - None
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - Female ISO/BSP Parallel Thread
- Pressure Class - Not Required
- Flange Facing - None
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Class - ASME Class 150
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Class - ASME Class 150
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - ASME Class 150
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Class - DN Class PN 16
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Class - DN Class PN 16
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Class - ASME Class 150
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - DN Class PN 16
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - Sanitary Clamp (BSOD)
- Pressure Class - Not Required
- Flange Facing - None
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - ASME Class 150
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - DN Class PN 16
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - DN Class PN 16
- Pressure Range - psig: 0.72 to 7.2 (bar: 0.05 to 5, kPa: 5 to 49)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - Female ISO/BSP Parallel Thread
- Pressure Class - Not Required
- Flange Facing - None
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 7.2 (bar: 0.05 to 5, kPa: 5 to 49)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Class - ASME Class 150
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - ASME B16.5 Flange
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Class - DN Class PN 16
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 7.2 (bar: 0.05 to 5, kPa: 5 to 49)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - DN Class PN 16
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Class - ASME Class 150
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - ASME B16.5 Flange
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 7.2 (bar: 0.05 to 5, kPa: 5 to 49)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - ASME Class 150
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - DN Class PN 16
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - ASME B16.5 Flange
- Pressure Range - psig: 0.72 to 1.4 (bar: 0.05 to 0.09, kPa: 5 to 9.6)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - DN Class PN 16
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - ASME Class 150
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - Sanitary Clamp (BSOD)
- Pressure Class - Not Required
- Flange Facing - None
- Pressure Range - psig: 0.72 to 7.2 (bar: 0.05 to 5, kPa: 5 to 49)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - DIN Flange
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 7.2 (bar: 0.05 to 5, kPa: 5 to 49)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - Female ISO/BSP Parallel Thread
- Pressure Class - Not Required
- Flange Facing - None
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - Not Required
Out of Stock
- Process Connection - DIN Flange
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - ASME Class 150
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - DN Class PN 16
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - DN Class PN 16
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Pressure Class - DN Class PN 16
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 11.6 (bar: 0.05 to 0.8, kPa: 5 to 80)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
- Process Connection - DIN Flange
- Flange Facing - Raised Face Smooth
- Pressure Range - psig: 0.72 to 2.9 (bar: 0.05 to 0.2, KPa: 5 to 19)
- Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
Configure
Specifications
Specifications
Brand
Actuator Type
- Screw
BSP Connection
- 1/2” Female ISO /BSP Parallel Thread
Diaphragm Material
- PTFE
Enclosure, Body Material
- 316L Stainless Steel
Flange Size - 1/2” (DN 15)
- 1/2” (DN 15) - ASME Class 150
- 1/2” (DN 15) - PN 16
Flow Rate
- 0.20 Cv
Media
- Gas
- Vapor
O-Ring Material
- Kalrez
Poppet Material
- 316L Stainless Steel
Pressure Range
- bar: 0.05 to 0.8
- kPa: 5 to 80
- psig: 0.72 to 11.6
Seat / Seal Material
- PTFE
Special Cleaning & Packaging
- ASTM G93 Level C-Cleaned
Supply Pressure - Maximum
- bar: 1
- kPa: 99.9
- psig: 14.5
Temperature Range
- -20° to 100° C (-4° to 212° F)
Tri-Clamp Connection
- 1/2” Sanitary Clamp
