Description

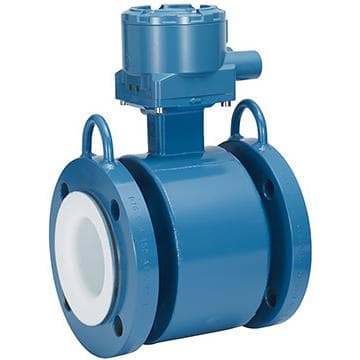

Rosemount 8707 Slurry Magnetic Flow Meter Sensors are designed for stable flow measurement in the most difficult high-noise slurry applications. When combined with the Rosemount 8712H transmitter, this system reduces process variability by providing the most stable flow output available.
The increased signal strength, coupled with advanced signal processing and superior filtering techniques provides the ideal solution to demanding flow-measurement applications, including those in the mining and pulp and paper industries.
Features- Capably handle extremely noisy applications with coils driven at 10 times the current of standard magnetic flow meters
- Achieve more precise flow measurement and reduce process variability with increased signal strength
- Obstructionless design is ideal for metering conductive slurries
- Thicker coils offer the most stable flow output available
- Reduce sensor inventory with a dual calibration option
- Gain the top benefits of AC magnetic meter systems combined with the stability and performance of pulsed DC technology
- Satisfy nearly any requirement with a wide range of liner and electrode materials
Specifications
Specifications
Brand
Accuracy
- 0.25 % over 40:1 Flow Turndow
Approvals & Certifications
- ATEX
- CE
- CSA
- FM
- GOST
- IECEx
- INMETRO
- NEPSI
Environmental Protection
- IP68
Flange Material
- Carbon Steel
- Stainless Steel
Materials of Construction
- Electrode: 80 % Platinum - 20 % Iridium
- Electrode: Nickel Alloy 276
- Electrode: Tantalum
- Electrode: Titanium
- Electrode: Tungsten-Carbide Coated 316L Stainless Steel / 316L Stainless Steel
- Expanded Line: ETFE
- Expanded Line: PFA
- Line: Adiprene
- Line: Linatex
- Line: Neoprene
- Lining: PTFE
Process Connection Style
- Flange Rating: ASME Class 150-2500, DIN PN 10/40
Size
- Line Size: 3” to 36” (80 to 900 mm)
