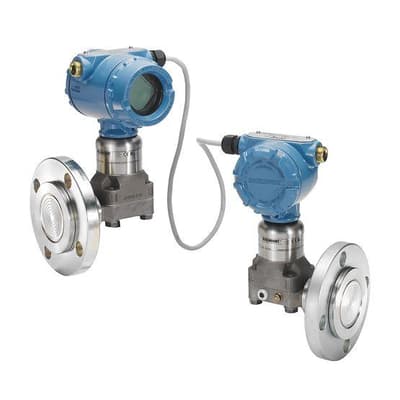

3051S Coplanar Pressure Transmitter

Brand: Rosemount
The Rosemount 3051S Coplanar Pressure Transmitter is designed with the patented Coplanar technology and is the no-equal solution for pressure, flow and level measurements.

This scalable platform seamlessly integrates with manifolds, primary elements and seal solutions and optimizes performance for accurate differential, gauge and absolute pressure measurements.

With the SuperModule™ platform, this transmitter resists overpressure and line pressure effects to maintain unmatched performance.

Get Online Mass and Density Measurement.

Enhance your bulk liquid measurement and eliminate the need for manual sampling.

By complementing the high-accuracy level measurement with high-performance temperature and pressure measurement, the density and mass of the product in the tank as well as the net volume can be continuously calculated.

Rosemount 3051S is the standard pressure transmitter for Rosemount Tank Gauging Systems:
  • One or several pressure transmitters per tank can be used for liquid and vapor pressure.
  • The state-of-the-art pressure accuracy gives the highest density precision.
  • The Rosemount 3051S supplies pressure data to the self-configured FOUNDATION™ Fieldbus communication-based
  • Tankbus.
The Rosemount 3051S Series consists of transmitters and flanges suitable for all kinds of applications, including crude oil
tanks and tanks with/without floating roofs.

The Rosemount 3051S is also available as a wireless device, which can be used in an IEC 62591 (WirelessHART®) network.

It is powered by a long-life intrinsically safe power module, and has the same outstanding performance as the wired version.
  • Enable online mass and density calculation – no need for manual density sampling
  • Use it in all storage applications, including crude oil tanks, pressurized tanks, and tanks with/without
  • floating roofs
  • Benefit from convenient and safe installation with two-wire IS bus power supply
  • Measure with industry-leading 0.025% pressure accuracy and density according to API chapter 3.6
  • Includes a wireless version utilizing a long-life IS power module
Features
  • Patented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solution
  • Best-in-class, scalable architecture enhances performance, functionality and process connections
  • Transmitter arrives fully assembled and leak tested for simple installation and maintenance
  • All-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy
  • Ultra and ultra for flow performance classes deliver 15-year stability and 15-year limited warranty
  • 200:1 rangedown produce reliable measurements and wide application flexibility
  • Integrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
  • SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
  • Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions
  • Remote display and interface offers easy access to process and device information
The Rosemount 3051S Coplanar Pressure Transmitter is designed with the patented Coplanar technology and is the no-equal solution for pressure, flow and level measurements.

This scalable platform seamlessly integrates with manifolds, primary elements and seal solutions and optimizes performance for accurate differential, gauge and absolute pressure measurements.

With the SuperModule™ platform, this transmitter resists overpressure and line pressure effects to maintain unmatched performance.

Get Online Mass and Density Measurement.

Enhance your bulk liquid measurement and eliminate the need for manual sampling.

By complementing the high-accuracy level measurement with high-performance temperature and pressure measurement, the density and mass of the product in the tank as well as the net volume can be continuously calculated.

Rosemount 3051S is the standard pressure transmitter for Rosemount Tank Gauging Systems:
  • One or several pressure transmitters per tank can be used for liquid and vapor pressure.
  • The state-of-the-art pressure accuracy gives the highest density precision.
  • The Rosemount 3051S supplies pressure data to the self-configured FOUNDATION™ Fieldbus communication-based
  • Tankbus.
The Rosemount 3051S Series consists of transmitters and flanges suitable for all kinds of applications, including crude oil
tanks and tanks with/without floating roofs.

The Rosemount 3051S is also available as a wireless device, which can be used in an IEC 62591 (WirelessHART®) network.

It is powered by a long-life intrinsically safe power module, and has the same outstanding performance as the wired version.
  • Enable online mass and density calculation – no need for manual density sampling
  • Use it in all storage applications, including crude oil tanks, pressurized tanks, and tanks with/without
  • floating roofs
  • Benefit from convenient and safe installation with two-wire IS bus power supply
  • Measure with industry-leading 0.025% pressure accuracy and density according to API chapter 3.6
  • Includes a wireless version utilizing a long-life IS power module
Features
  • Patented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solution
  • Best-in-class, scalable architecture enhances performance, functionality and process connections
  • Transmitter arrives fully assembled and leak tested for simple installation and maintenance
  • All-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracy
  • Ultra and ultra for flow performance classes deliver 15-year stability and 15-year limited warranty
  • 200:1 rangedown produce reliable measurements and wide application flexibility
  • Integrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibility
  • SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
  • Advanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditions
  • Remote display and interface offers easy access to process and device information

Specifications

Approvals & Certifications

  • CE
  • IEC
  • NSF

Approvals & Certifications

  • SIL 2/3 Certified to IEC 61508

Communication

  • 4-20 mA HART, WirelessHART
  • FOUNDATION Fieldbus

Measuring Range

  • psia: 4,000 (kPa: 27,579, bar: 275.79) Absolute
  • Up to psi: 2,000 (kPa: 13,789, bar: 137.89) Gauge & Differential

NACE & NIST

  • NACE

Wetted Materials

  • 316 Stainless Steel, Gold-Plated 316L Stainless Steel
  • Alloy 400, Gold-Plated Alloy 400
  • Alloy C-276 or Hastelloy
  • Tantalum

Applications

Rosemount TankMaster™:
  • Level
  • Temperature (spot and average)
  • Flow
  • Pressure
  • Density
  • Volume (TOV, GOV, GSV, NSV, WIA/WIV)
  • Mass
Rosemount 2410 Tank Hub:
  • Level
  • Oil/water interface level
  • Temperature (spot and average)
  • Pressure
  • Volume (TOV, 100 strapping points)
  • Observed density
