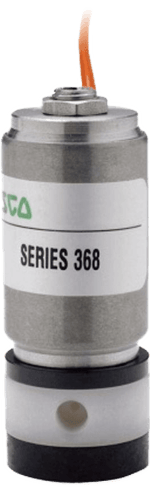

ASCO 368 Series Isolation Valves

Brand: ASCO
The ASCO 368 Series is a line of 2-way and 3-way isolation valves constructed with PTFE and ETFE materials, making them highly resistant to chemical attack.

The compact fluid isolation valves save valuable space in medical and analytical equipment.

The 368 Series' excellent self-draining capability and easy-to-flush low-volume internal cavity make it ideal in applications where cross-contamination must be minimized.
Features
  • 2/2 normally closed & 3/2 universal constructions
  • Diaphragmisolation
  • Inline mount
  • 0.062" orifice
  • Vacuum to 30psi
  • 4.5 to 6.8 Watt
  • ~20ms response time
  • Meets CE directives
The ASCO 368 Series is a line of 2-way and 3-way isolation valves constructed with PTFE and ETFE materials, making them highly resistant to chemical attack.

The compact fluid isolation valves save valuable space in medical and analytical equipment.

The 368 Series' excellent self-draining capability and easy-to-flush low-volume internal cavity make it ideal in applications where cross-contamination must be minimized.
Features
  • 2/2 normally closed & 3/2 universal constructions
  • Diaphragmisolation
  • Inline mount
  • 0.062" orifice
  • Vacuum to 30psi
  • 4.5 to 6.8 Watt
  • ~20ms response time
  • Meets CE directives

Specifications

Brand

Body Material

  • Engineered Plastics

Flow

  • Less than .05 Cv, Less than .04 Kv

Function

  • 2-Way - 2/2 Normally Closed, 2-Way - 2/2 Normally Open, 3-Way - 3/2 Universal

Maximum Differential, Maximum Operating Pressure

  • Vacuum to 150 psig

Media

  • Aggressive Liquids & Gases

Operating Environment

  • Indoor

Pipe / Port Size

  • 1/4

Port Type

  • UNF

Standards & Regulations

  • IP65

Valve Actuation

  • Solenoid

Voltage

  • 12 DC, 24 DC, 115 AC, 50/60
