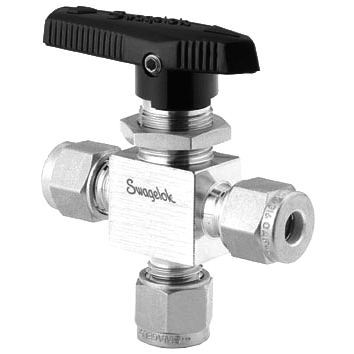

3-Way 40X Series

Brand: Swagelok Company
Request Information
Features
  • Style: One-Piece Instrumentation Ball Valves
  • Valve Series: 3-Way, 41X, 42X, 43X, 44X, 45X
  • Body Material: Brass, Alloy 400
  • Packing Material: PTFE
  • End Connections: 1/16 in. to 3/4 in.
  • Maximum Pressure Rating: psig: 3,000 (bar: 206)
  • Optional: Flow Path and Vent Port
Features
  • Style: One-Piece Instrumentation Ball Valves
  • Valve Series: 3-Way, 41X, 42X, 43X, 44X, 45X
  • Body Material: Brass, Alloy 400
  • Packing Material: PTFE
  • End Connections: 1/16 in. to 3/4 in.
  • Maximum Pressure Rating: psig: 3,000 (bar: 206)
  • Optional: Flow Path and Vent Port
Close
Close

Specifications

Brand

BSP Connection

  • 1/2” Female ISO /BSPT (Side/Bottom)
  • 1/4” BSPT Female ISO (Side/Bottom)
  • 3/8” Female ISO /BSPT (Side/Bottom)

Direct Mount

  • No

Enclosure, Body Material

  • Alloy 400 or Monel
  • Brass

Flow Rate

  • 0.05 to 12 Cv

NPT Connection

  • 1/2” NPT Female
  • 1/4” NPT Female
  • 1/4” Tube / Male NPT (Side/Bottom)
  • 1/8” NPT Female
  • 3/8” NPT Female

Options

  • Flow Paths
  • Production Test
  • Vent Port

Orifice Size

  • 0.040”
  • 0.049”
  • 0.093”

Packing Material

  • PTFE

Pressure Rating

  • psig: 1,500 to 3,000

Process Temperature

  • 10° to 65° C (50° to 150° F)

Tube Connection

  • 1/16” Tube
  • 1/2” Tube
  • 1/4” Tube
  • 1/8” Tube
  • 10 mm Tube
  • 12 mm Tube
  • 3 mm Tube
  • 3/4” Tube
  • 3/8” Tube
  • 6 mm Tube
  • 8 mm Tube

Valve Type

  • Manual

VCR / VCO Connection

  • 1/4” Integral Male VCR
