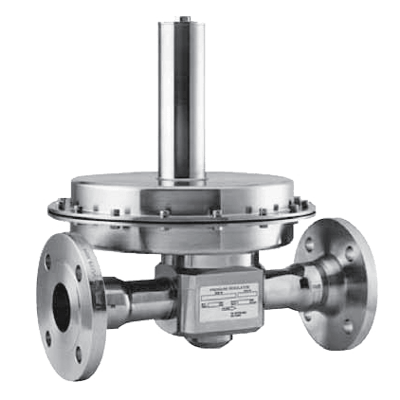

TBRS16 Series Pressure-Reducing Regulator

Brand: Swagelok Company
Features
  • Spring-loaded pressure control
  • Diaphragm sensing mechanism
  • Ultrasensitive with millibar control
  • Balanced poppet
  • External feedback
  • Maximum Inlet Pressure: psig: 232 (bar: 16, kPa: 1600)
  • Pressure Control Range: psig: 0.07 to 2.9 (bar: 0.004 to 0.2, kPa: 0.48 to 19.9)
  • Operating Temperature: -20° to 100°C (-4° to 212°F)
  • Flow Coefficient: 6.9 Cv
  • Inlet and Outlet Connections: 2", ASME Flange, DIN Flange
  • Materials of Construction:
    • Enclosure: 316L Stainless Steel
    • Poppet: 316L Stainless Steel
    • Diaphragm: PTFE
    • O-Ring: FKM, EPDM, FFKM, Nitrile
    • Seat: 316L Stainless Steel
Features
  • Spring-loaded pressure control
  • Diaphragm sensing mechanism
  • Ultrasensitive with millibar control
  • Balanced poppet
  • External feedback
  • Maximum Inlet Pressure: psig: 232 (bar: 16, kPa: 1600)
  • Pressure Control Range: psig: 0.07 to 2.9 (bar: 0.004 to 0.2, kPa: 0.48 to 19.9)
  • Operating Temperature: -20° to 100°C (-4° to 212°F)
  • Flow Coefficient: 6.9 Cv
  • Inlet and Outlet Connections: 2", ASME Flange, DIN Flange
  • Materials of Construction:
    • Enclosure: 316L Stainless Steel
    • Poppet: 316L Stainless Steel
    • Diaphragm: PTFE
    • O-Ring: FKM, EPDM, FFKM, Nitrile
    • Seat: 316L Stainless Steel
Close

Displaying prices & availability for Ohio, United States in USD. Change location.

Models matching criteria: 432
TBRSFD16M1-02-2-FTE
view description
  • Process Connection - DIN Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - FFKM
  • Seat Seal Material - EPDM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFD16M1-02-3-VTV-FS
view description
  • Process Connection - DIN Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16M1-02-3-VTE
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - EPDM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16M1-02-3-VTE-FS-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - EPDM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16M1-02-1-FTV
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - FFKM
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFD16A1-02-3-VTV
view description
  • Process Connection - DIN Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFD16A1-02-1-VTE-FS-G93
view description
  • Process Connection - DIN Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - EPDM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16M1-02-1-VTF-FS
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - FFKM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16A1-02-3-VTF-FS-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - FFKM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16A1-02-2-ETF-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - EPDM
  • Seat Seal Material - FFKM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16A1-02-1-ETE-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - EPDM
  • Seat Seal Material - EPDM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFD16A1-02-1-FTE-FS-G93
view description
  • Process Connection - DIN Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - FFKM
  • Seat Seal Material - EPDM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16M1-02-2-VTE-FS-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - EPDM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFD16A1-02-2-ETV
view description
  • Process Connection - DIN Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - EPDM
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16A1-02-2-ETF-FS-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - EPDM
  • Seat Seal Material - FFKM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFD16M1-02-2-VTV-FS-G93
view description
  • Process Connection - DIN Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16M1-02-3-ETE
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - EPDM
  • Seat Seal Material - EPDM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFD16A1-02-3-VTE-FS
view description
  • Process Connection - DIN Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - EPDM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16A1-02-2-VTF-FS
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - FFKM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16M1-02-1-FTF-FS
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - FFKM
  • Seat Seal Material - FFKM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16A1-02-1-VTV-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Field Adjustable
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFD16M1-02-1-FTE
view description
  • Process Connection - DIN Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - FFKM
  • Seat Seal Material - EPDM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16M1-02-2-VTV
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16M1-02-3-VTF-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - FFKM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16M1-02-1-ETV-FS
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - EPDM
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16M1-02-1-ETF-FS
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - EPDM
  • Seat Seal Material - FFKM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFD16A1-02-2-VTV-FS
view description
  • Process Connection - DIN Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16A1-02-3-ETV-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - EPDM
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Field Adjustable
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16M1-02-2-FTE-FS
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - FFKM
  • Seat Seal Material - EPDM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFD16M1-02-1-ETV-FS
view description
  • Process Connection - DIN Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - EPDM
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFD16A1-02-3-FTE-FS
view description
  • Process Connection - DIN Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - FFKM
  • Seat Seal Material - EPDM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16M1-02-1-FTE
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - FFKM
  • Seat Seal Material - EPDM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFD16M1-02-3-VTE-G93
view description
  • Process Connection - DIN Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.29 to 2.9 (bar: 0.019 to 0.19, kPa: 1.9 to 19)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - EPDM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16A1-02-1-VTF-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - FFKM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFD16M1-02-1-FTF-G93
view description
  • Process Connection - DIN Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - FFKM
  • Seat Seal Material - FFKM
  • Adjustment Type - Field Adjustable
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16M1-02-1-VTV-FS-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - Fluorocarbon (FKM)
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFD16A1-02-1-FTF-FS-G93
view description
  • Process Connection - DIN Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - FFKM
  • Seat Seal Material - FFKM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFA16M1-02-2-FTF-FS-G93
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - DN Class PN 16
  • Pressure Range - psig: 0.14 to 0.72 (bar: 0.009 to 0.05, kPa: 0.9 to 5)
  • Seal Material - FFKM
  • Seat Seal Material - FFKM
  • Adjustment Type - Factory Set & Permenantly Locked
  • Special Cleaning - ASTM G93 Level C-Cleaned
Out of Stock
TBRSFD16A1-02-1-ETV
view description
  • Process Connection - DIN Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - EPDM
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
TBRSFA16A1-02-1-ETV
view description
  • Process Connection - ASME B16.5 Flange
  • Pressure Class - ASME Class 150
  • Pressure Range - psig: 0.07 to 0.14 (bar: 0.004 to 0.009, kPa: 0.48 to 0.96)
  • Seal Material - EPDM
  • Seat Seal Material - Fluorocarbon (FKM)
  • Adjustment Type - Field Adjustable
  • Special Cleaning - Not Required
Out of Stock
Show More Models (392)
Close
Close

Specifications

Brand

Actuator Type

  • Factory Set & Locked
  • Screw

Diaphragm Material

  • PTFE

Enclosure, Body Material

  • 316L Stainless Steel

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - PN 16

Flow Rate

  • 6.9 Cv

Media

  • Gas
  • Vapor

O-Ring Material

  • Ethylene Propylene (EPR)
  • FKM
  • Nitrile
  • Perfluorocarbon - FFKM

Poppet Material

  • 316L Stainless Steel

Pressure Range

  • bar: 0.004 to 0.19
  • kPa: 0.48 to 19.9
  • psig: 0.07 to 2.9

Seat / Seal Material

  • EPDM
  • FFKM
  • Fluorocarbon (FKM)
  • Nitrile

Special Cleaning & Packaging

  • ASTM G93 Level C-Cleaned

Supply Pressure - Maximum

  • bar: 16
  • kPa: 1,600
  • psig: 232

Temperature Range

  • -20° to 100° C (-4° to 212° F)
Close
